Sonnet xMac Mini Server - Thunderbolt 3 Edition | Thunderbolt 3 to PCIe card expansion system / 1U rackmount enclosure for Mac Mini with Thunderbolt 3 ports

Sonnet

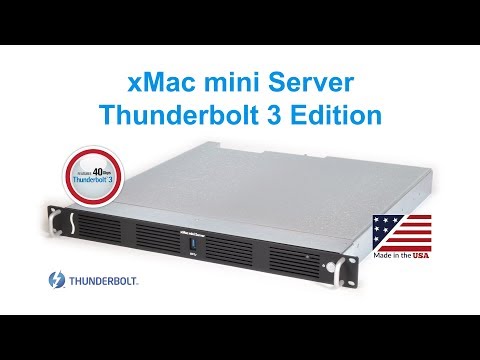

xMac Mini Server - Thunderbolt 3 Edition

Thunderbolt 3 to PCIe card expansion system / 1U rackmount enclosure for Mac Mini with Thunderbolt 3 ports

Product Code: SONXMACMSATB3

Suggested Retail Price £1097+VAT

Where to buy Videos

Stock status: In Stock; available from resellers

Have a question about this product or want to request a demo?

Contact Our Technical Team

Kit List

View your Kit List

Warranty

All new Sonnet products purchased on or after January 1, 2019, have a two-year limited warranty, except as listed here. All new Sonnet products purchased on or before December 31, 2018, have a one-year limited warranty, except as listed here.

  • Adds Connectivity and Capabilities to Your Mac mini - Connects two high-performance PCIe 1.1, 2.0, or 3.0 expansion cards to the Mac mini
  • Diverse PCIe Card Support - Supports pro video capture and playout, pro audio, 10 Gigabit Ethernet, Fibre Channel, SAS/SATA RAID controllers, and other PCIe cards
  • Server Room Ready - 1U rackmount enclosure with user-replaceable fans, easy to remove lid, built-in cable management features
  • Makes Your Mac mini Road-Ready - Securely holds the computer and PCIe cards in place during transport, adding mobility to your Mac
  • Thunderbolt 3 Interface - Offers approximately 1750 MB/s of PCIe bandwidth to the installed cards
  • Two Thunderbolt 3 Ports - One port used to connect to the computer; second port supports daisy-chaining of up to five additional Thunderbolt(1) peripheral devices to your computer, attaching a single USB(2) peripheral device, or connecting a 4K display.
  • Rear Panel Connectivity, Front Panel Operation - Ethernet, HDMI and USB-A ports mounted at the rear of the chassis for easy connectivity; front panel power button activates power switch on Mac mini; illuminated USB-A port enables connection of keyboard, mouse, thumb drive, etc.
  • Power for High-Performance PCIe Cards - Integrated 150W power supply provides plenty of power for cards you install; auxiliary PCIe power connector enables use of power hungry non-GPU cards such as the Avid® Pro Tools|HDX or the RED® ROCKET-X™

Compatibility

  • Mac mini® Late 2018 - Early 2020 (current)
  • macOS 10.14.6+
  • macOS Catalina compatible
Technical Notes
  1. Second Thunderbolt 3 port supports Thunderbolt and Thunderbolt 2 peripheral devices on Macs used with the Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter, sold separately.
  2. Second Thunderbolt 3 port supports USB 3.1 Gen 1 (5Gb) or Gen 2 (10Gb) devices when connected with proper cable or adapter (sold separately).
  3. Compatibility requires the installation of Thunderbolt technology-aware drivers, available from the manufacturer. See our supporting PCIe Card Thunderbolt Compatibility Chart for a partial list of compatible PCIe cards.
  4. ThunderLok 3 compatible specifically with Sonnet 0.5-meter and 0.7-meter Thunderbolt 3 cables; Sonnet 1- and 2-meter Thunderbolt 3 cables require ThunderLok 3L
  5. Mac mini and PCIe cards sold separately.

Transform a Mac mini® with Thunderbolt 3 Ports from a Basic Computer to a Workstation

For many applications, a Mac mini with Thunderbolt 3 ports has all the processing power necessary to allow it to replace a full-sized desktop or workstation. But for pro audio and video users, the mini’s compact size can limit its potential—there are no slots for PCIe expansion cards needed to provide additional connectivity and functionality, and you need to securely rackmount the computer. Sonnet’s award-winning xMac™ mini Server addresses these issues and maximizes a Mac mini’s capabilities in a big way.

Inside its custom 1U enclosure, the xMac mini Server Thunderbolt 3 Edition securely mounts your Mac mini, and connects two PCIe cards to the computer through one of its Thunderbolt 3 ports. A USB-A port and a power button mounted on the front panel allow the connection of a keyboard, mouse, thumb drive or other USB peripheral to, and the operation of the system without requiring access to the back of the computer. Additional panel-mount cables (HDMI, 10 Gigabit Ethernet, and USB-A) are included to connect the ports on the computer to ports on the back of the xMac mini Server for convenient external connection. Due to the active electronics at both ends of Thunderbolt cables, passthrough Thunderbolt ports are not possible, but an opening on the back panel enables you to easily route cables to the computer or the internal connections on an installed card.

Imagine The Possibilities...

Video Ingest Station. ProTools Multitrack Recording Rig. Metadata Controller.
Large-Capacity RAID Storage Server. Video wall server.

Connect two high-performance PCIe cards to transform your Mac mini with Thunderbolt 3 ports from a simple computer to something much more.

Dual PCIe 2.0 Slots; Supports PCIe 1.1, 2.0, and 3.0 Cards

The xMac mini Server Thunderbolt 3 Edition supports one full-height, full-length, single-width card, plus one full-height, half-length card. Plus, if you install a PCIe card that includes a daughter card (or interface connector bracket) like the ones included with RME’s HDSPe MADI FX card, Blackmagic Design’s DeckLink 4K Extreme 12G, and the Lynx AES16e-50, a supplied mounting bracket allows you to securely mount the daughter card inside the chassis next to the main card, leaving the xMac’s second PCIe slot open for another card.

Expansion Made Easy

The xMac mini Server provides easy access to its PCIe slots and your computer’s ports; simply loosen two thumbscrews and then slide the top cover off. Once inside, installing PCIe cards and connecting cables to the computer are simple. The included Thunderbolt 3 (40Gbps) cable connects your Mac mini to one of the xMac mini Server’s Thunderbolt 3 ports, linking the PCIe slots to the computer. The xMac’s second Thunderbolt 3 port enables daisy chaining of additional Thunderbolt peripherals such as additional PCIe expansion (like Sonnet’s Echo Express III-R rackmount chassis), pro video breakout boxes, video capture and playback devices, audio I/O devices, and more.

Idea Enabler

Mac mini as an ingest station for uncompressed 4K video? Absolutely. Mac mini as a virtual sound check, pro audio plug-in DAW and record rig? Sure! xMac mini Server enables you to expand your Mac mini’s capabilities in ways you never imagined. For PCIe card compatibility information, see Sonnet's PCIe Card Thunderbolt Compatibility Chart for a list of cards(3) that have been tested to be recognized over a Thunderbolt connection and compatible with Thunderbolt technology requirements.

Power for High-Performance PCIe Cards

The xMac mini Server integrates a universal 150W power supply and includes an auxiliary PCIe power connector for cards that require supplementary power, such as the Avid Pro Tools|HDX or the RED ROCKET. In short, there is plenty of power for any combination of compatible cards.

40Gbps Thunderbolt 3 — The USB-C That Does It All

The xMac mini Server Thunderbolt 3 Edition includes two Thunderbolt 3 ports; the first is used for connection to your computer, while the second supports daisy chaining of up to five additional Thunderbolt peripheral devices to a single port on your computer(1). This Sonnet solution includes 10Gbps USB 3.1 Gen 2 support, meaning you can connect a USB device to the second Thunderbolt 3 port using the proper cable or adapter. There’s also full support for connecting a 4K display @ 60Hz. For connected peripherals requiring extra power, 15 watts is provided to connected bus-powered devices.

Smart Design Inside and Out

The xMac mini Server has numerous thoughtful design touches. The fans are user-replaceable, and there’s an optional extra-quiet fan kit available. The xMac mini Server’s power switch turns the computer on and off without the need for you to reach around back, and the PCIe slots power on/off with the Mac mini for energy savings. The enclosure’s rear panel includes mounting holes for two BNC connectors used for HD/SDI output from cards like the RED ROCKET-X, or for MADI and word clock IO from cards like the RME HDSPe MADI FX. There’s a central power hub for the computer and the PCIe slot’s power supply, enabling you to power everything with one power cord. The front panel USB-A provides port provides a handy visual cue, lighting up when the computer is on.

Thunderbolt 3 (40Gbps) Cable and ThunderLok™ 3 Included

To connect your computer to the xMac mini Server, Sonnet includes a 0.5-meter Thunderbolt 3 (40Gbps) cable. And, to prevent accidental cable disconnection which can lead to data loss, we include a Sonnet ThunderLok 3 Thunderbolt connector retainer clip(4) to secure the cable to the xMac. ThunderLok 3 is easy to install and use—just slide it over one end of the cable, and then plug in the connector and secure it to the chassis by turning a thumbscrew. Because of its unique design, ThunderLok remains on the cable so it won’t get lost when not in use.

Big Sur Compatiblity

THUNDERBOLT 3 PRODUCTS SKU Big Sur Intel Macs Big Sur M1 Macs
Echo 11 Thunderbolt 3 Dock SON-ECHO-DK11-TB3 √ (M1 Macs support only one monitor in TB Docks)
Solo5G USB 3 to 5GBASE-T Ethernet Adapter SON-SOLO5G-USB3 √ (Update driver to version 1.4.12) X Marvell driver update TBD
Solo10G Thunderbolt 3 to 10GBASE-T Ethernet Adapter SON-SOLO10G-TB3
Solo10G Thunderbolt 3 to SFP+ 10 Gigabit Ethernet Adapter (SFP+ included) SON-SOLO10G-SFP-TB3
Twin10G Thunderbolt 3 Edition - Dual Port 10GBASE-T Ethernet Adapter SON-SOLO10G-SFP-TB3 Sonnet X550 driver update coming Q1 2021
Twin10G SFP+ Thunderbolt 3 Edition - Dual Port SFP+ 10 Gigabit Ethernet Adapter SON-TWIN10GCSFP-TB3 Sonnet 82599 driver update coming Q1 2021
Echo Express SEL Thunderbolt 3 One-Slot Low-Profile PCIe Card Expansion System SON-ECHOEXPSE1-TB3 √ (PCIe card must have M1 compatible driver)
Echo Express SE I Thunderbolt 3 One-Slot PCIe Card Expansion System SON-ECHOEXPSEL-TB3 √ (PCIe card must have M1 compatible driver)
Echo Express SE IIIe Thunderbolt 3 Three-Slot PCIe Card Expansion System SON-ECHOEXPSE3-E-TB3 √ (PCIe cards must have M1 compatible drivers)
Echo III Desktop Thunderbolt 3 Three-Slot PCIe Card Expansion System SON-ECHO3D-TB3 √ (PCIe cards must have M1 compatible drivers)
Echo III Rackmount Thunderbolt 3 Three-Slot PCIe Card Expansion System SON-ECHO3R-TB3 √ (PCIe cards must have M1 compatible drivers)
2018 xMac mini Server with one full-length and one half-length slot Thunderbolt 3 Edition SON-XMACMSA-TB3 √ (PCIe cards must have M1 compatible drivers)
eGFX Breakaway Box 550 SON-GPU550W-TB3 X (M1 Macs do not currently support eGPUs)
eGPU Breakaway Box 750 SON-GPU-750W-TB3 X (M1 Macs do not currently support eGPUs)
eGPU Breakaway Box 750ex SON-GPU-750WEX-TB3 X (M1 Macs do not currently support eGPUs)
eGPU Breakaway Puck Radeon RX 5500XT SON-GPURX5500XT-TB3 X (M1 Macs do not support Dual Display TB Adapters)
eGPU Breakaway Puck Radeon RX 5700 SON-GPURX5700-TB3 X (M1 Macs do not support Dual Display TB Adapters)
Thunderbolt 3 to Dual DisplayPort Adapter - Supports two 4K Displays SON-TB3DDP4K X (M1 Macs do not support Dual Display TB Adapters)
Thunderbolt 3 to Dual HDMI Adapter - Supports two 4K Displays SON-TB3DHDMI X (M1 Macs do not support Dual Display TB Adapters)
PROFESSIONAL MEDIA READERS SKU Big Sur Intel Macs Big Sur M1 Macs
SF3 Series - CFexpress/XQD Thunderbolt 3 Pro Card Reader SON-SF3-2CFEX √ CFExpress | X Sony XQD driver update TBD
SF3 Series - CFast 2.0 Thunderbolt 3 Pro Card Reader SON-SF32CFST
SF3 Series - RED Mini-Mag Thunderbolt 3 Pro Card Reader SON-SF3-2RMM
SF3 Series - SxS Thunderbolt 3 Pro Card Reader SON-SF32SXS X Sony SxS driver update TBD
Thunderbolt Pro P2 Card Reader - Thunderbolt 2 SON-TBP2 Sonnet P2 driver update coming Q1 2021 Sonnet P2 driver update coming Q1 2021
Echo ExpressCard Pro SxS Media Reader - Thunderbolt 2 SON-ECHOPROE34 X Sony SxS driver update TBD
SDHC Adapter for SxS Camera Slot or SF3 Series SxS Reader SON-SDSXS-E34
  • 1 x xMac mini Server Thunderbolt 3 Edition, assembled
  • 1 x Daughter card mounting bracket
  • 1 x 0.5-meter Thunderbolt 3 (40Gbps) cable
  • 1 x Thunderbolt 3 cable lock(5)
  • 1 x Power cord
  • Documentation

Please Note Mac mini and PCIe cards sold separately
