Production Systems

Lumens VS-LC200 | Capture Vision Station



Capture Vision Station

Product Code: LUMVSLC200

Suggested Retail Price £2975+VAT

View Product Variations Where to buy Videos

Have a question about this product or want to request a demo?

Contact Our Technical Team

Kit List

View your Kit List

Technology Guides

  • Capture Vision Station
  • 1080p 60/30fps recording
  • 4 HDMI Inputs and IP video sources including Lumens IP Cameras, NDI|HX Camera, and standard RTSP streams
  • Supports HDMI-embedded audio or analog stereo audio with 4 channels Audio Input mixing and gain control
  • Advanced Scenes Switch
  • Flexible scaling and window processing, supports PIP, PBP and up to 4 windows layout and mixing
  • Built-in 1TB (LUM-VSLC200), 2TB (LUM-VSLC200-2TB) HDD storage
  • Supports Katura, Panopto, OpenCast, YouTube, Twitter, Livestream, Wowza and more

4-Channel recording, streaming, live switching media processor

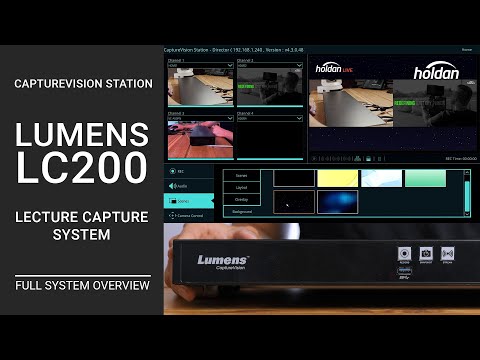

Lumens LC200 CaptureVision Station is an all-in-one media processor. Just one stand-alone device that allows you to mix four video sources, recording, streaming, and live-switching simultaneously; perfect to serve as the core system for your video project.

Bring multiple videos and audio together

The LC200 captures various video sources, including HDMI inputs, Lumens IP cameras, NDI cameras, and RTSP streams, and allows you to switch among them. Together with four line-in / MIC-in inputs, you can provide complete audiovisual experience to your viewers!

Record everything

The LC200 records not just the program-out video but also records four independent channels video as well with gorgeous high definition images and crystal clear audio, which also makes your post-production much easier.

Built-in 1TB HDD, USB port, FTP supports

The LC200 has a built-in 1Terabyte hard drive that can store up to 500 hours of video. You also have options to upload your recordings to an external USB device or the FTP server.

Live advanced scenes switch

The powerful function of advanced scenes switch, helps you capture the attention of your viewers and increase audience engagement in your event. By just one click, you can roll out user-defined scenes that contain PBP PIP layout, title/logo overlays, and pleasing background.


Through Outlook or Google calendar, you can schedule your important events to create, record and stream your video content.

Content management system integration

The LC200 integrates with several content management systems like Panopto, Kaltura, and Opencast,etc. which are great applications for enterprise video and school lectures.

Multi-stream anywhere

Live streaming is a powerful tool. The LC200 can live stream up to three destinations like YouTube, Facebook, Twitter or twitch.

Lumens VS-LC200

Lecture Capture with 2TB Storage

Lumens LC-RC01U

Remote Control Panel

Lumens and Panopto announce partnership

Lumens announced a new partnership with Panopto™, the leader in video management systems. The Lumens VS-LC200 CaptureVision System is seamlessly compatible with Panopto. The integration provides organisations with a cost-effective unified solution for recording, live streaming, and managing video content.

Recording PTZ Cameras

PTZ cameras are not like traditional camcorders. A few can record video internally to a Micro SD card, but these are the exceptions rather than the rule. Lumens, Datavideo and the high-end Panasonic PTZ Cameras (like the AW-HE130 and AW-UE150) do not have internal recording so we must look at other options. The Panasonic AW-HE38, AW-HE40, AW-HE42, and AW-UE70 can all record HD, (the UE70 can even record in UHD). This internal recording can be very useful, but it is heavily compressed so the quality is not as good as the cameras are capable of.

Quick guide to lecture capture

There’s nothing mystical about recording, streaming and sharing lectures with students. In fact a full distance learning system can be designed and installed in weeks. It starts with three simple steps: 1. Lecture Theatre Camera Use a professional camera with a zoom lens that you can control remotely. With this sort of (PTZ) camera, you can position it anywhere, including fixed to the ceiling in an inverted position. For now, the camera can be just zoomed in on the lecturer. When there’s an audience, it can zoom out and pan to capture the whole room. There’s a broad selection of professional models that deliver fantastic results in dark rooms and sun-lit halls.

eLearning: when students are in different time zones

UK institutions are facing the threat of a significant loss of income from overseas students in the 2020-2021 academic year. The government has signalled that degree level education can be delivered remotely and online but only where the quality of learning is maintained at a high standard. To achieve this goal, universities are implementing an eLearning strategy that places the student experience first. Without that, courses risk losing accreditation and university funding becomes a critical issue.

Preparing for distance learning: a quick guide to lecture capture devices for universities

The UK government has challenged universities to deliver high quality online learning resources for under-graduates studying remotely. With limited time available to specify, install, integrate technology and train staff, there is pressure to select equipment that balances functionality with ease of use.

Preparing for distance learning: a quick guide to lecture capture cameras for universities

Enforcement of social distancing is expected to continue well into the Autumn. This is of particular concern for university students who may find student accommodation closed and lectures limited to 30-40% capacity. So, how can university education continue? The natural answer is online.

Sharing Worship Events to a Worldwide Audience

Streaming has long been associated with worship outreach in America, the middle east and Africa. The UK and Europe are now following suit with the faithful viewing live and recorded worship events online via Facebook and YouTube channels. So what options are available, and can it be easily set up by volunteers? Record and Upload You can choose to record an event ahead of time and upload an MP4 video file to Facebook or YouTube. Most video is streamed at 720p so set your camera to record at this video standard.

Capture, Record and Stream - Live in Minutes

On Tuesday I had the pleasure of setting up two PTZ cameras with a new all-in-one switching, recording and streaming system from Lumens. I say pleasure because the only time I had to read the manual was for a default login. Really, just once. That’s the beauty of Lumens. We sell a lot of encoding, recording and streaming equipment, but I’m not sure anything is as straight-forward as the LC200 multi-channel recorder and streaming device. That’s great news for schools, universities, charities, business, conference and theatres – or any organisation that doesn’t have a dedicated technical crew available for every event.

Video Streaming Solutions - Beginner's Guide

Stream it live to anywhere from anywhere The simplest way to deliver content live to staff, students, customers and service users is via YouTube Live or Facebook Live. There are lots of ways to produce and stream professional looking video. Our technical team can advise you on the best solution for your needs – give us a call on 01457 851000.

New launches at ISE 2020

Here's an overview of our vendors exhibiting at ISE 2020. Please call us on +44 (0)1457 851000 if you would like to book a stand tour with one of our manufacturers. BLACKMAGIC DESIGN HALL 3, STAND C140 The Video Assist 12G 5” and 7” monitor recorders are now shipping. The original HD versions were incredibly popular with AV technicians who wanted to verify SDI and HDMI feeds and check waveform levels. For production teams, their 4K HDR capture makes them a superb on-camera SD card recorder. The ATEM Mini is a very small, cost-effective 4 channel HDMI video switcher with streaming output. Great as a portable mixer or a signal switcher, it’s being adopted by everyone from conference producers to AV technicians looking for simple HDMI switching.
