RRP: £437.00
Your Price: N/A
Mfr. Part #: ECHO-DK20-T5
Our Part #: SONECHODK20T5
EAN #: 732311014390
Description
How do you improve the performance of Sonnet Thunderbolt 4 docks? You double the bandwidth. You increase the power. You add the most-requested features.

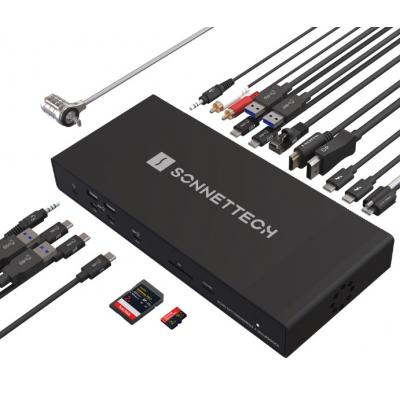

Introducing Echo 20 Thunderbolt 5 SecureDock — a powerful enterprise dock with built-in 10GbE networking designed for secure environments that prohibit onboard storage. Transform a single cable connection from your computer into two Thunderbolt 5 peripheral ports, two video output ports, one 10Gb Ethernet port, nine 10 Gbps USB 3 ports, and more! With 80 Gbps of bi-directional data speed — twice as fast as Thunderbolt 4 — and 120 Gbps for higher display bandwidth, SecureDock delivers the performance and connectivity modern enterprise workflows demand.
Connect
Your Peripherals and Power Your Laptop with One Thunderbolt 5 Cable
Echo 20 Thunderbolt 5 SecureDock links plugged-in Thunderbolt devices, monitor(s), USB peripherals, powered speakers, and Ethernet cable to your computer with a single Thunderbolt 5 cable. Got a laptop? Keep its power adapter in your bag — the SecureDock will power it with 140W of charging power. When it’s time to leave, just disconnect the Thunderbolt cable, grab your computer, and go.
Integrated
HDMI and DP Display Support
Echo 20 Thunderbolt 5 SecureDock features video output ports for HDMI and DisplayPort displays, enabling you to connect either an up to 8K* @60Hz HDMI monitor or a 4K @144Hz DisplayPort monitor.
Blazing-fast
10GBASE-T Access
Echo 20 Thunderbolt 5 SecureDock supports demanding workflows with built-in 10 Gigabit Ethernet, enabling connection to 10GbE infrastructure using cost-effective Cat 6 or Cat 6A copper cabling (up to 55 or 100 meters, respectively) — eliminating the need for a separate adapter.
Delivering up to 10x the performance of Gigabit Ethernet, the dock also supports 5 Gbps, 2.5 Gbps, 1 Gbps, and 100 Mbps link speeds when connected to switches or NAS devices without 10GbE support, using standard Cat 5e (or better) cabling.
High Resolution
Audio Support
Echo 20 Thunderbolt 5 SecureDock features a hi-res Audio Codec (coder-decoder) that supports the dock’s audio I/O jacks with high quality, lossless audio. And, with the SecureDock’s fanless, silent design, you’ll hear every detail.
Dual
Downstream Thunderbolt 5 Ports for Simple, Powerful Connectivity
Echo 20 Thunderbolt 5 SecureDock incorporates three Thunderbolt 5 ports. One connects to and powers your computer — ideal for laptops with only one or two Thunderbolt ports, since it handles charging and data through a single connection. The other two support Thunderbolt 5, 4, and 3 devices — as well as USB4 and USB 3 peripherals — and each provides 15W for demanding bus-powered devices. If supported by your computer, you can also connect one, two, or even three additional displays.
Powerful
10 Gbps USB-A and USB-C Ports
Echo 20 Thunderbolt 5 SecureDock delivers powerful USB 3 connectivity with four 10 Gbps USB-A ports, and five 10 Gbps USB-C charging ports — including two on the front, two on the back, and a front 15W USB-C charging port. All ports support super-fast 10 Gbps USB NVMe SSDs at full speed.
Echo 20 doesn’t skimp on power either — each port provides 7.5W (or 15W) to ensure that drives with higher peak power requirements mount and operate reliably. An added benefit of the USB-C ports is they support device charging even when the computer is off, asleep, or disconnected.
Thunderbolt Certified for Mac, Windows, Chromebook, and iPad Pro
Echo 20 Thunderbolt 5 SecureDock is certified for use with Apple M series Macs; Thunderbolt 3 Intel Macs; Thunderbolt 5 and most Thunderbolt 4 Windows computers; Thunderbolt 5 and 4 Chromebook computers; and M series iPad Pro. See Tech Specs for current computer and OS compatibility information.
One Cable Peripheral Connection
Instant access – plug all your peripherals into the Echo dock and connect your computer to the dock with the included Thunderbolt 5 cable.
Twenty Interfaces
SecureDock includes three Thunderbolt 5; four 10 Gbps USB Type A, and five 10 Gbps USB Type-C charging ports; video output ports for HDMI and DP displays; RJ45 10 Gigabit Ethernet; 3.5mm combo audio; 3.5mm microphone; line-level R+L RCA audio out; and fast UHS-II SD and microSD card slots.
Two Thunderbolt 5 Ports for Peripherals
Connect two Thunderbolt peripherals (with support for daisy chaining additional peripherals). Also support USB4 and USB 3 devices, plus displays.
10 Gbps USB-C Port (with 15W Charging)
USB-C port provides 15W of power for operation or charging. Port supports super-fast 10 Gbps USB NVMe SSDs at full speed.
10 Gbps USB-C Ports (with 7.5W Charging)
Four USB-C ports provide 7.5W of power each for operation or charging. Ports support 10 Gbps USB NVMe SSDs at full speed.
10 Gbps USB-A Ports
(7.5W)
Four USB-A ports provide 7.5W of power each and support 10 Gbps USB NVMe SSDs at full speed.
Video Output (HDMI) Port
Connect a 1080p, 1440p, 4K, 5K, 6K, or 8K HDMI display directly, no adapter required.
Video Output (DisplayPort) Port
Connect a 1080p, 1440p, or 4K display directly, no adapter required.
Connect One, Two, or Three Displays via Thunderbolt
Depending on your computer, connect one or two Thunderbolt or USB-C displays directly, and daisy chain a third (see Tech Specs for details). Supports HDMI and DP displays with Thunderbolt-compatible adapters (sold separately).
Support for 1080p, 1440p, 4K, 5K, 6K, and 8K Displays, @ up to 240Hz
Depending on your computer, supports up to two 8K displays, or three or four 4K, 5K, or 6K displays
Charge Your Laptop
Provides 140W through the included Thunderbolt 5 cable to power and charge your laptop.
Hi-res Audio I/O Support
3.5mm stereo headset jack on the front panel. Separate left/right channel RCA line out jacks that deliver a clean signal to powered speakers or an amplifier, plus a 3.5mm microphone jack populate the back panel.
Fast UHS-II SD and microSD Card Slots
Compatible with SD, SDHC, SDXC; and microSD, microSDHC, and microSDXC memory cards; supports 320 MB/s read speeds with UHS-II cards.
Mac Compatible
Supports all M series Macs, and Intel Macs with Thunderbolt 3 ports.
Windows Compatible
Supports Windows computers with Thunderbolt 5 or 4, or USB4 ports.
Chromebook Compatible
Supports Chrombeook computers with Thunderbolt 5 or 4, or USB4 ports.
Apple M Series iPad Pro Compatible
Supports M series iPad Pro tablets.
How do you improve the performance of Sonnet Thunderbolt 4 docks? You double the bandwidth. You increase the power. You add the most-requested features.
Introducing Echo 20 Thunderbolt 5 SecureDock — a powerful enterprise dock with built-in 10GbE networking designed for secure environments that prohibit onboard storage. Transform a single cable connection from your computer into two Thunderbolt 5 peripheral ports, two video output ports, one 10Gb Ethernet port, nine 10 Gbps USB 3 ports, and more! With 80 Gbps of bi-directional data speed — twice as fast as Thunderbolt 4 — and 120 Gbps for higher display bandwidth, SecureDock delivers the performance and connectivity modern enterprise workflows demand.
Connect
Your Peripherals and Power Your Laptop with One Thunderbolt 5 Cable
Echo 20 Thunderbolt 5 SecureDock links plugged-in Thunderbolt devices, monitor(s), USB peripherals, powered speakers, and Ethernet cable to your computer with a single Thunderbolt 5 cable. Got a laptop? Keep its power adapter in your bag — the SecureDock will power it with 140W of charging power. When it’s time to leave, just disconnect the Thunderbolt cable, grab your computer, and go.
Integrated
HDMI and DP Display Support
Echo 20 Thunderbolt 5 SecureDock features video output ports for HDMI and DisplayPort displays, enabling you to connect either an up to 8K* @60Hz HDMI monitor or a 4K @144Hz DisplayPort monitor.
Blazing-fast
10GBASE-T Access
Echo 20 Thunderbolt 5 SecureDock supports demanding workflows with built-in 10 Gigabit Ethernet, enabling connection to 10GbE infrastructure using cost-effective Cat 6 or Cat 6A copper cabling (up to 55 or 100 meters, respectively) — eliminating the need for a separate adapter.
Delivering up to 10x the performance of Gigabit Ethernet, the dock also supports 5 Gbps, 2.5 Gbps, 1 Gbps, and 100 Mbps link speeds when connected to switches or NAS devices without 10GbE support, using standard Cat 5e (or better) cabling.
High Resolution
Audio Support
Echo 20 Thunderbolt 5 SecureDock features a hi-res Audio Codec (coder-decoder) that supports the dock’s audio I/O jacks with high quality, lossless audio. And, with the SecureDock’s fanless, silent design, you’ll hear every detail.
Dual
Downstream Thunderbolt 5 Ports for Simple, Powerful Connectivity
Echo 20 Thunderbolt 5 SecureDock incorporates three Thunderbolt 5 ports. One connects to and powers your computer — ideal for laptops with only one or two Thunderbolt ports, since it handles charging and data through a single connection. The other two support Thunderbolt 5, 4, and 3 devices — as well as USB4 and USB 3 peripherals — and each provides 15W for demanding bus-powered devices. If supported by your computer, you can also connect one, two, or even three additional displays.
Powerful
10 Gbps USB-A and USB-C Ports
Echo 20 Thunderbolt 5 SecureDock delivers powerful USB 3 connectivity with four 10 Gbps USB-A ports, and five 10 Gbps USB-C charging ports — including two on the front, two on the back, and a front 15W USB-C charging port. All ports support super-fast 10 Gbps USB NVMe SSDs at full speed.
Echo 20 doesn’t skimp on power either — each port provides 7.5W (or 15W) to ensure that drives with higher peak power requirements mount and operate reliably. An added benefit of the USB-C ports is they support device charging even when the computer is off, asleep, or disconnected.
Thunderbolt Certified for Mac, Windows, Chromebook, and iPad Pro
Echo 20 Thunderbolt 5 SecureDock is certified for use with Apple M series Macs; Thunderbolt 3 Intel Macs; Thunderbolt 5 and most Thunderbolt 4 Windows computers; Thunderbolt 5 and 4 Chromebook computers; and M series iPad Pro. See Tech Specs for current computer and OS compatibility information.
One Cable Peripheral Connection
Instant access – plug all your peripherals into the Echo dock and connect your computer to the dock with the included Thunderbolt 5 cable.
Twenty Interfaces
SecureDock includes three Thunderbolt 5; four 10 Gbps USB Type A, and five 10 Gbps USB Type-C charging ports; video output ports for HDMI and DP displays; RJ45 10 Gigabit Ethernet; 3.5mm combo audio; 3.5mm microphone; line-level R+L RCA audio out; and fast UHS-II SD and microSD card slots.
Two Thunderbolt 5 Ports for Peripherals
Connect two Thunderbolt peripherals (with support for daisy chaining additional peripherals). Also support USB4 and USB 3 devices, plus displays.
10 Gbps USB-C Port (with 15W Charging)
USB-C port provides 15W of power for operation or charging. Port supports super-fast 10 Gbps USB NVMe SSDs at full speed.
10 Gbps USB-C Ports (with 7.5W Charging)
Four USB-C ports provide 7.5W of power each for operation or charging. Ports support 10 Gbps USB NVMe SSDs at full speed.
10 Gbps USB-A Ports
(7.5W)
Four USB-A ports provide 7.5W of power each and support 10 Gbps USB NVMe SSDs at full speed.
Video Output (HDMI) Port
Connect a 1080p, 1440p, 4K, 5K, 6K, or 8K HDMI display directly, no adapter required.
Video Output (DisplayPort) Port
Connect a 1080p, 1440p, or 4K display directly, no adapter required.
Connect One, Two, or Three Displays via Thunderbolt
Depending on your computer, connect one or two Thunderbolt or USB-C displays directly, and daisy chain a third (see Tech Specs for details). Supports HDMI and DP displays with Thunderbolt-compatible adapters (sold separately).
Support for 1080p, 1440p, 4K, 5K, 6K, and 8K Displays, @ up to 240Hz
Depending on your computer, supports up to two 8K displays, or three or four 4K, 5K, or 6K displays
Charge Your Laptop
Provides 140W through the included Thunderbolt 5 cable to power and charge your laptop.
Hi-res Audio I/O Support
3.5mm stereo headset jack on the front panel. Separate left/right channel RCA line out jacks that deliver a clean signal to powered speakers or an amplifier, plus a 3.5mm microphone jack populate the back panel.
Fast UHS-II SD and microSD Card Slots
Compatible with SD, SDHC, SDXC; and microSD, microSDHC, and microSDXC memory cards; supports 320 MB/s read speeds with UHS-II cards.
Mac Compatible
Supports all M series Macs, and Intel Macs with Thunderbolt 3 ports.
Windows Compatible
Supports Windows computers with Thunderbolt 5 or 4, or USB4 ports.
Chromebook Compatible
Supports Chrombeook computers with Thunderbolt 5 or 4, or USB4 ports.
Apple M Series iPad Pro Compatible
Supports M series iPad Pro tablets.
EAN # : 732311014390
