Converts up to four IP streams into one 4Kp60 HDMI and SDI output

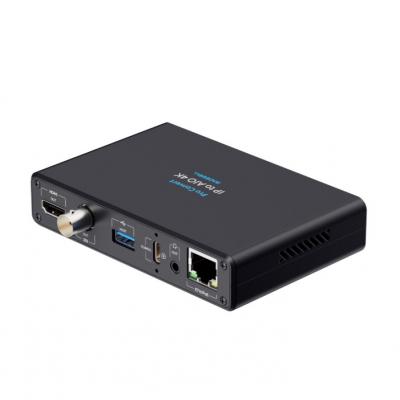

Pro Convert IP to AIO 4K is a standalone decoder that converts up to four IP streams into one 4Kp60 HDMI and SDI output in various layouts including Multiview.

The device is compatible with mainstream formats and protocols, including H.264/H.265, NDI®, as well as SRT, RTMP, RTSP, HLS, MPEG-TS, Zixi, and RIST. It also supports remote centralized management via Magewell Control Hub and Zixi Zen Master. With this product, users can easily integrate 4K network streams into existing infrastructures, making it ideal for video production or distribution in broadcast and Pro AV.

Decoding Features
Support multiple output modes for decoding of different protocol signals
• Single View
Number of decoded channels: 1
Supported protocols: NDI High Bandwidth, NDI HX, NDI HX2, NDI HX3, MPEG-TS over
RTP/UDP/SRT/RIST, RTMP, RTSP, HLS, HTTP, and ZIXI
Formats: H.264, H.265, SpeedHQ, MPEG2
Resolution: Up to 4096x2160p60
• Picture-in-Picture
Number of decoded channels: 2
Supported protocols: NDI High Bandwidth*, NDI HX, NDI HX2, NDI HX3, MPEG-TS over RTP/UDP/SRT/RIST, RTMP, RTSP, HLS, HTTP, and ZIXI
Formats: H.264, H.265, SpeedHQ, MPEG2*
Resolution: Up to 1920x1080p60
*Note: Only one NDI High Bandwidth or one MPEG2 format video signal can be decoded
• Quad View
Number of decoded channels: 4
Supported protocols: NDI HX, NDI HX2, NDI HX3, MPEG-TS over RTP/UDP/SRT/RIST, RTMP, RTSP,
HLS, HTTP, and ZIXI
Formats: H.264, H.265
Resolution: Up to 1920x1080p60
Support decoding AAC, MP3, AC3, Opus, and G.711 audio formats
Support NDI 6.3

HDMI Output Features
Maximum output: 4096x2160 60fps 4:4:4 8-bit, or 4096x2160 60fps 4:2:2 12-bit (transport depth 12-bit, video depth 10-bit)
Supported output formats:
4096×2160p 23.98/24/25/29.97/30/50/59.94/60 256:135
3840×2160p 23.98/24/25/29.97/30/50/59.94/60 16:9
1920×1080p 24/25/29.97/30/59.94/60 16:9
1920×1080i 50/59.94/60 16:9
1280×720p 23.98/24/25/29.97/30/50/59.94/60 16:9
720×576i 50 16:9/4:3
720×480i 59.94 16:9/4:3
Color space: BT.601/BT.709/BT.2020
Support HDR PQ/HLG
Audio output: 48/96KHz 8-channel
HDMI interface: HDMI 2.0

SDI Output Features
Maximum output: 4096x2160 60fps 4:2:2 10-bit
Supported output formats:
4096×2160p 23.98/24/25/29.97/30/50/59.94/60 256:135
3840×2160p 23.98/24/25/29.97/30/50/59.94/60 16:9
1920×1080p 24/25/29.97/30/59.94/60 16:9
1920×1080i 50/59.94/60 16:9
1280×720p 23.98/24/25/29.97/30/50/59.94/60 16:9
720×576i 50 16:9/4:3
720×480i 59.94 16:9/4:3
Output YUV BT.601/709/2020 signals
Audio output: 48KHz 8-channel
SD/HD/3G/6G/12G-SDI output interface
Support SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL (ST 425)/3Gb-DS (ST 425)/6G (ST 2081)/12G (ST 2082) standards
Support Closed Caption compliant with CEA–608 or CEA–708 embedded CEA–608 standards
Output HDR (PQ / HLG) through ANC metadata
Output 12G-SDI signals up to 55m, 6G-SDI signals up to 75m, and 3G-SDI signals up to 130m

Configuration Management
Support registration with Control Hub and ZIXI ZEN Master for remote centralized management
Provide WebUI tools
Provide comprehensive information regarding the device and decoded signals in real-time
Support preview of output images and PTZ control
Configure audio and video signal decoding and output parameters, including OSD, deinterlacing, video format, audio gain, sample rate, Ping test, security settings, configuration files import and export, and network connections
Support firmware upgrade
Support USB NET
Support Edge/Firefox/Chrome/Safari/Opera web browsers
Support HTTP APIs

On-board Setting Button
Rotary encoder button:
Rotate: Switch options
Press: Bring up settings menu, enter current option, or confirm current parameter

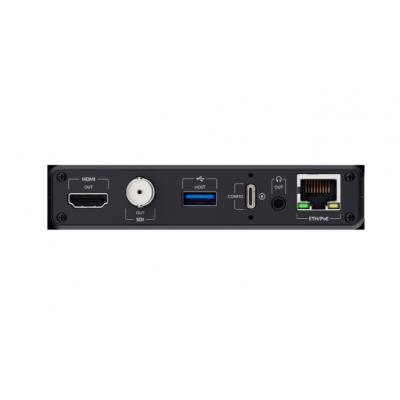

Network Interface
10/100/1000Mbps Ethernet port
Support IEEE 802.3at PoE+

USB Interface
USB3.0 Type C
12V 20W power supply
USB NET
USB3.0 Type A
Support connecting external keyboard and mouse for settings modification

Audio Interface
3.5mm LINE OUT

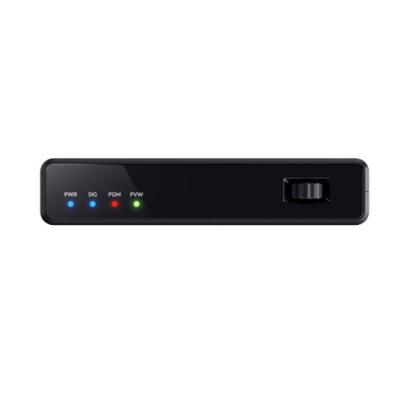

LED Indicators
Power indicator (PWR)
Solid: Power connected
Off: No power connected
Decoding status indicator (SIG)
Solid blue: All selected sources in single/multiple decoding are decoding normally
Solid red: All selected sources in single/multiple decoding are decoding abnormally
Solid green: Both normal and abnormal decoding conditions exist in multiple decoding
Off: No sources selected in single/multiple decoding
Tally light
Live (PGM): Red light indicates NDI signal source is live
Preview (PVW): Green light indicates NDI signal source is in preview

Dimensions
120 mm (L) x 79.3 mm (W) x 24.5 mm (H)

Mounting Holes
Diameter: Φ6.5mm mounting holes

Power Consumption
Maximum current for 12V power supply: ~1.26 A
Maximum power consumption: ~15.1 W

Operating Environment
Operating temperature: 0 to 40 degrees Celsius
Storage temperature: –20 to 70 degrees Celsius
Relative humidity: 5% to 90% (non-condensing)

• Converts up to four IP streams into one 4Kp60 HDMI and SDI output
• Decodes one 4Kp60 IP stream or up to four HD IP streams for a multiview output
• Outputs one 4Kp60 video signal simultaneously via HDMI and SDI interfaces
• Supports the Zixi protocol, with remote centralized management via Zixi Zen Master
• Supports the RIST protocol, configurable for Simple Profile or Main Profile
• Supports HDR10 and HLG formats
• Supports closed captions compliant with CEA–608 and CEA–708 standards

EAN # : 6936572401812
