Arca-Swiss Camera Receiver and Plate - Space Grey

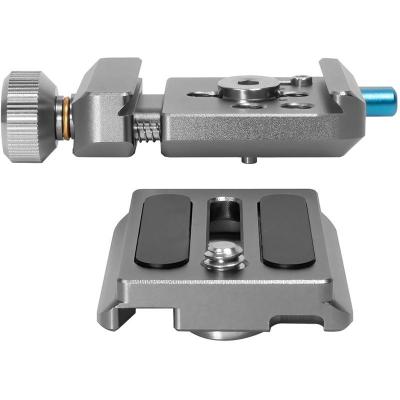

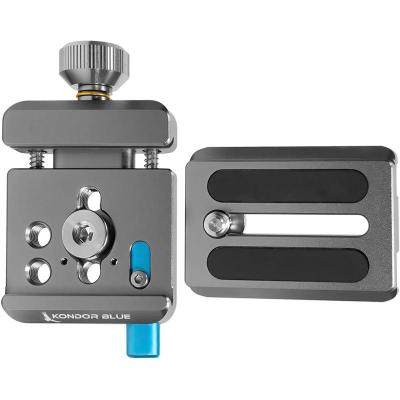

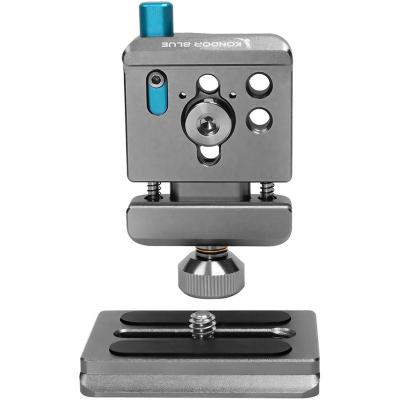

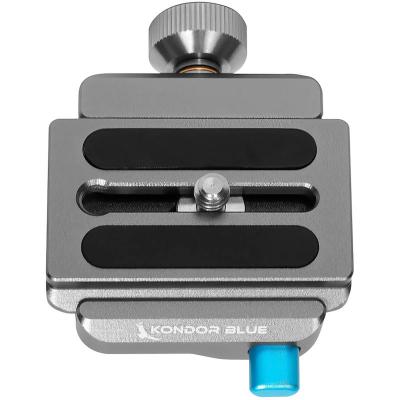

The Arca-Swiss Camera Receiver and Plate are a compact solution for mounting any Arca-Swiss plate. The in-line clamp allows for a wide range of adjustment to accommodate any Arca plate. The system is guided by 2x spring loaded bolts and tightened with a large stainless steel knob that is ultra smooth thanks to a compact thrust bearing.

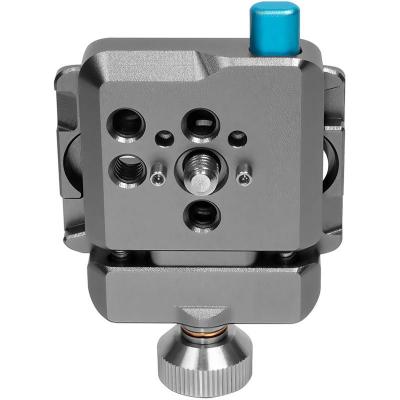

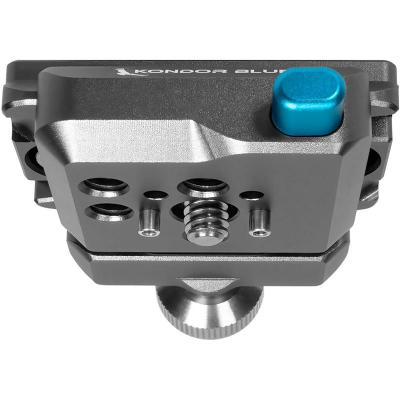

There are a variety of options for mounting the Arca-Swiss Camera Receiver Plate. The center 3x ¼-20 holes are 9mm apart for easy compatibility with many other industry solutions. Two additional ¼-20 holes are 12.5mm away from center. An additional, unique mounting option for this Arca-Swiss Camera Receiver Plate is an included ¼-20 bolt that mounts through the top of the plate (extends 7.5mm into the receiving mount). Where applicable, this mount can be used in combination with the included 3mm ARRI-style anti-twist pins. If these pins aren’t needed, they can be stored directly in the base of the Arca-Swiss Camera Receiver Plate.

The plate and receiver are fully machined out of aerospace-grade aluminum for a lightweight, robust Arca-Swiss solution. As always, the system is backed by KONDOR BLUE’s lifetime guarantee and customer service.

Features:
• Arca-Swiss Camera Receiver and Plate
• Smooth spring-loaded tightening with thrust bearing
• Optional male ARRI-style anti-twist pins
• 5x ¼ 20 mounts
• Safety release button
• Arca Swiss Receiver: 68g/2.4 oz
• Arca Swiss Plate: 20g/.7 oz
• 52mm W x 17mm T 67x mm D

EAN # : 5068650985318
