Thunderbolt Devices
Sonnet Echo SE I T5 Thunderbolt 5 Expansion System | Desktop 1-slot Thunderbolt 5 to PCIe Card Expansion System for Computers with Thunderbolt or USB4 Ports
Product Code: SONECHOEXPSELT5
Suggested Retail Price £403+VAT
Where to buyHave a question about this product or want to request a demo?
Contact Our Technical TeamAll new Sonnet products purchased on or after January 1, 2019, have a two-year limited warranty, except as listed here. All new Sonnet products purchased on or before December 31, 2018, have a one-year limited warranty, except as listed here.
Laptop and mini computers with Thunderbolt 5 ports offer tremendous processing power, but don’t have the PCIe slots creative pros need for connecting adapter cards to add specialized ports and processing capabilities critical to their workflows. Sonnet offers the ideal solution to overcome this limitation with the Echo™ SE I T5 Thunderbolt™ 5 to PCIe card expansion system. This compact, single-slot solution works with the latest Macs, Windows PCs, and Linux computers equipped with Thunderbolt or USB4 ports, letting you connect almost any Thunderbolt-compatible (non-GPU) PCIe card using the included Thunderbolt 5 cable.
Echo SE I T5 enables you to connect a pro PCIe card — such as video capture and playback; audio interface; SAS, SATA or Fibre Channel host bus adapter; multiport 10Gb or 25Gb Ethernet; or RAID controller — to add the ports and processors your computer lacks. Providing up to 6000 MB/s of bi-directional PCIe bandwidth to the installed card — twice that of Thunderbolt 4 or 3 — you’ll be able to extract even better performance with cards with ultra-high bandwidth requirements when connected to a computer with Thunderbolt 5 ports!

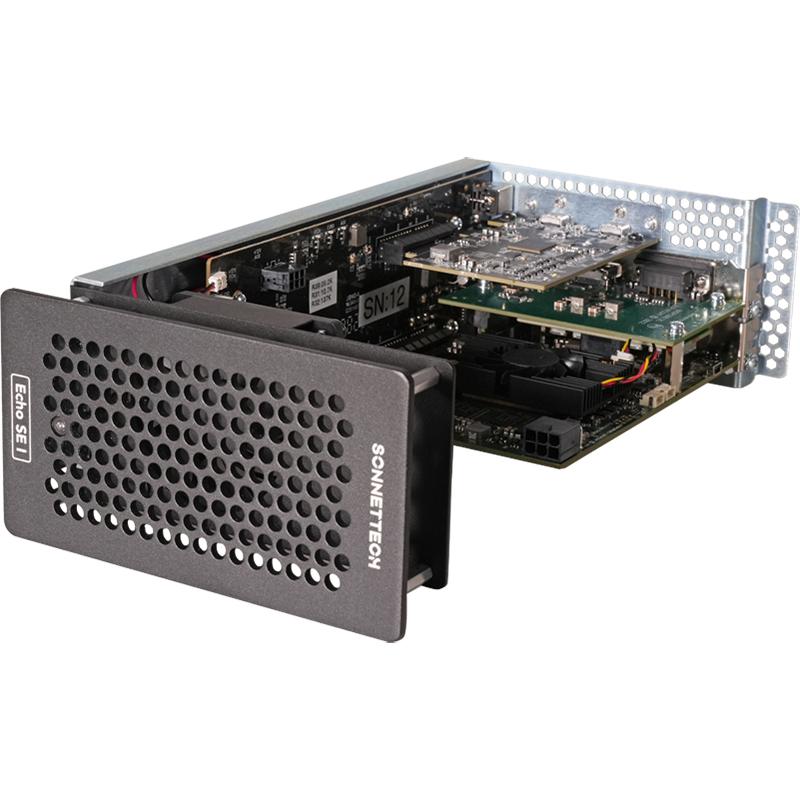

Sonnet Echo SE I T5 features an x8 PCIe 4.0 slot, and supports a single- or double-width PCIe card. Double-width? Examples include pro video and audio cards like the Blackmagic Design DeckLink 8K Pro G2, which spans two card spaces, or main cards with connected daughter cards that use the neighboring space for additional ports.
Echo SE I T5 includes an auxiliary PCIe power connector that enables you to use a card that requires extra power such as the AJA Kona 5, Blackmagic Decklink 4K Extreme12G and DeckLink 8K Pro G2, and Deltacast 12G/4C.
Measuring just 3.4 inches wide by 11.2 inches long by 5.8 inches tall, the compact Echo SE I T5 supports cards at a maximum of 7.75 inches long, making it compatible with nearly all Thunderbolt-compatible PCIe 4.0, 3.0, 2.0, and 1.1 cards. Not sure if a card you own or are considering is compatible? We’ve put together a compatibility list that identifies cards that are Thunderbolt compatible and organized by fit and power compatibility with specific expansion systems.

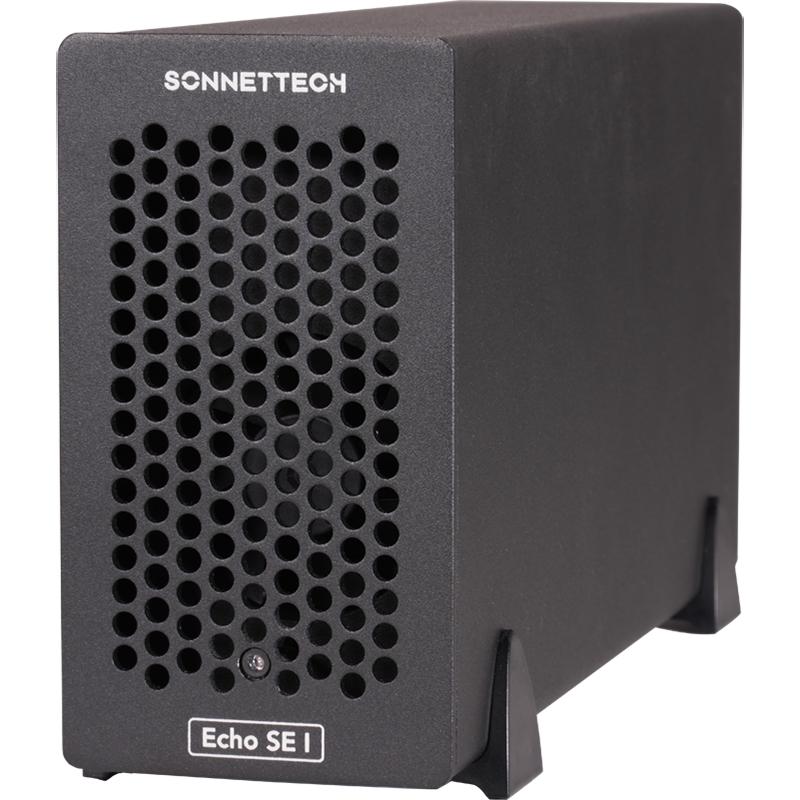

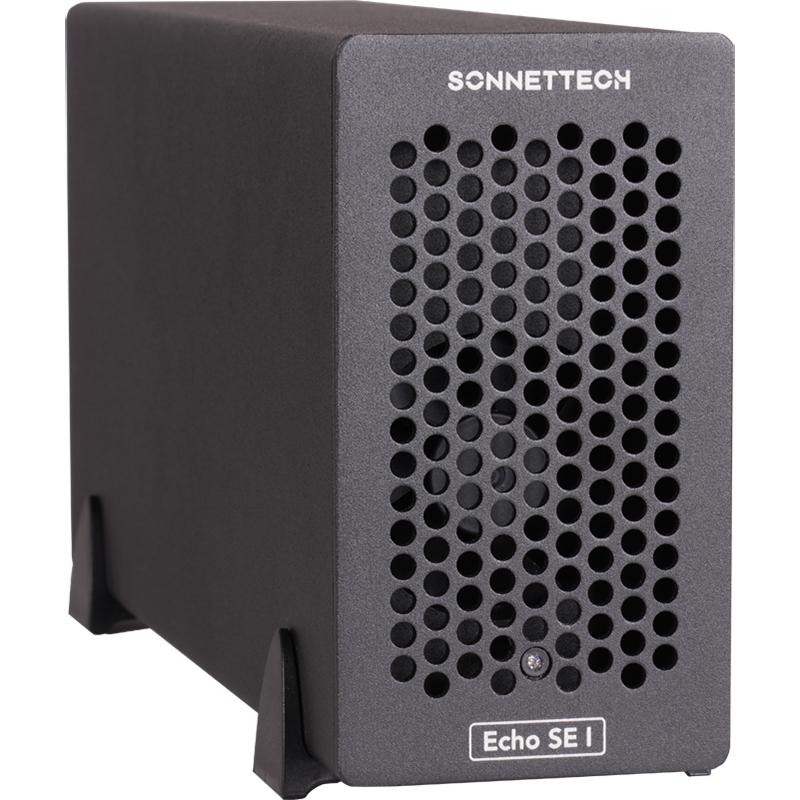

The Echo SE I T5 system’s lightweight, rugged aluminum outer shell securely houses the installed PCIe card. Because it automatically powers on and off with your computer, there is no power switch on the enclosure, ensuring you don’t waste energy by forgetting to turn it off.
Echo Express SE I T5 is engineered for ultra-quiet operation, making it ideal for noise-sensitive environments such as recording studios, broadcast facilities, edit bays, and shared office spaces. Its internal airflow path is optimized to allow the temperature-controlled, variable-speed fan to cool the installed card quietly and efficiently — even under peak load.
Sonnet includes a Thunderbolt cable engineered to deliver Thunderbolt 5’s full bandwidth and power delivery performance. The cable is fully compatible with Thunderbolt 5, 4, and 3, and USB4 computers. A Sonnet ThunderLok Thunderbolt connector lock is also included to prevent accidental cable disconnections.
Many Sonnet Thunderbolt products featuring Thunderbolt ports come equipped with threaded mounting holes to securely attach a Sonnet ThunderLok connector lock, preventing Thunderbolt cables from accidentally disconnecting.
Performance numbers: 80Gb/s bi-directional data and up to 120Gb/s video stream performance.
Echo SE I T5 is built with the features and quality you expect from a Sonnet expansion system, plus the Thunderbolt 5 interface you need for maximum performance. With 80 Gbps of bi-directional data speed — twice as fast as Thunderbolt 4 — and up to 120 Gbps for higher display bandwidth, you'll revolutionize your productivity.

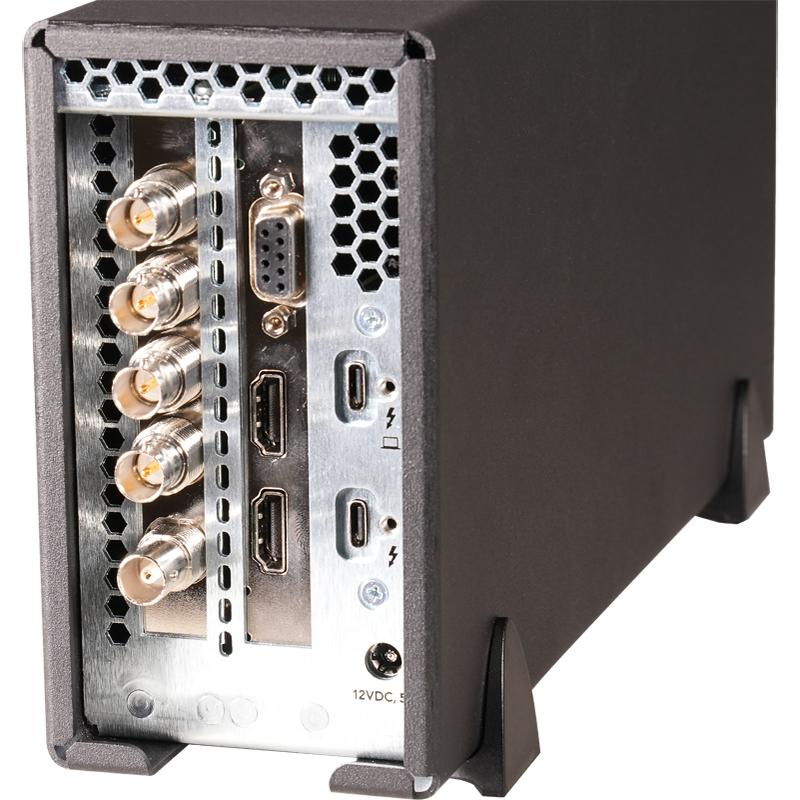

Echo SE I T5 features a dual-port, ultra-high speed Thunderbolt interface that delivers the PCIe bandwidth needed to support most cards at maximum performance. While one port is reserved for connecting your computer; the secondary port enables connection of additional Thunderbolt or USB peripheral devices.
