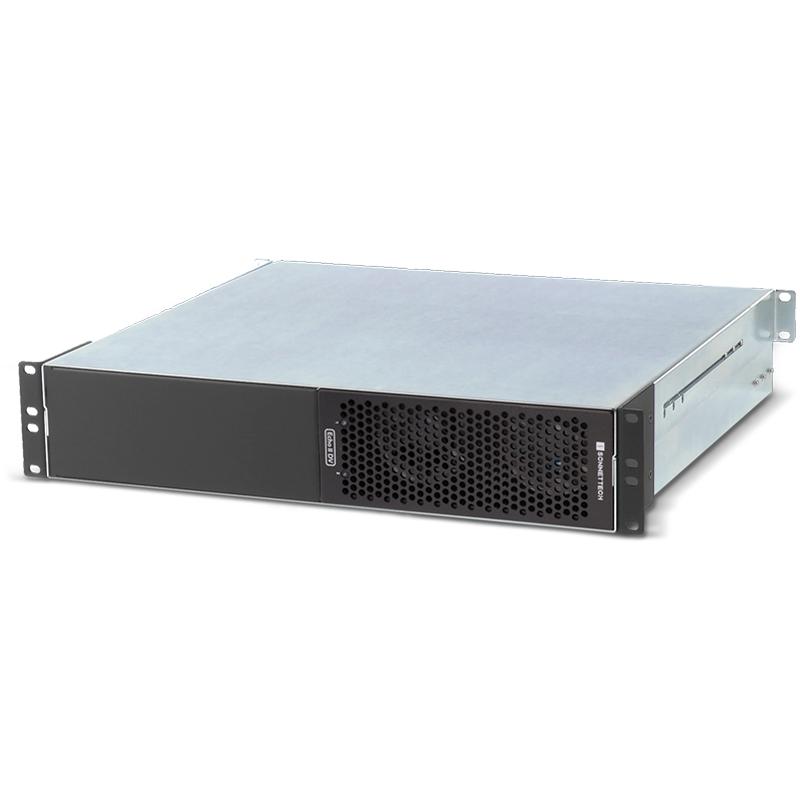

Sonnet Echo II DV T5 Rackmount Thunderbolt 5 Expansion System | Rackmount 2-slot Dual Thunderbolt 5 Interface to PCIe Card Expansion System for Computers with Thunderbolt or USB4 Ports
Product Code: SONECHO2RDVTB5
Suggested Retail Price £1497+VAT
Where to buyHave a question about this product or want to request a demo?
Contact Our Technical TeamAll new Sonnet products purchased on or after January 1, 2019, have a two-year limited warranty, except as listed here. All new Sonnet products purchased on or before December 31, 2018, have a one-year limited warranty, except as listed here.
Do you use one of the hot new laptops or mini desktops with ultra-high-performance Thunderbolt™ 5 ports in your creative pro workflow? Without PCIe expansion slots, those computers’ onboard processing power alone is probably not enough to get your job done. You still need the specialty cards that add needed video and audio I/O, transcode data, and connect to high-speed networks and shared storage.
Sonnet Echo™ II DV T5 Rackmount eliminates the limitation. This professional Thunderbolt 5 to PCIe card expansion system connects two full-length, single-width PCIe cards to your computer, each to a separate Thunderbolt port for maximum bandwidth to each card — it’s the ultimate solution for connecting cards with high bandwidth requirements.
Some of the latest computers — including MacBook Pro (M4 Pro/M4 Max) , Mac mini (M4 Pro), Mac Studio (M3 Ultra/M4 Max), and select Windows PCs — offer multiple Thunderbolt 5 ports, each with its own independent bus delivering 6000 MB/s of PCIe bandwidth. Echo II DV T5 Rackmount is designed to fully exploit that speed. Instead of sharing bandwidth across slots, it uses a dedicated Thunderbolt 5 interface for each slot, delivering full PCIe bandwidth to both cards at the same time. This means you can run two high-demand PCIe cards at full performance simultaneously — perfect for DV I/O, ultra-fast NVMe storage, and multi-port 10 and 25Gb Ethernet workflows.
Echo II DV T5 Rackmount features two x16 PCIe slots with support for a wide variety of cards. For power-hungry cards, Echo II DV T5 integrates a universal 400W power supply and includes dual 75W auxiliary power connectors (one for each card slot) for cards that require extra power, including AJA Kona 5, Blackmagic DeckLink 8K Pro G2 (with main board [SDI ports] only), and Avid Pro Tools | HDX. Designed without a power switch, Echo II DV T5 powers on and off automatically with the connected computer, saving energy in the long run. With no power switch, you can’t forget to turn off the system!
Echo II DV T5 Rackmount supports Thunderbolt compatible, single-width, non-GPU PCIe 4.0, 3.1, 2.0, and 1.1 cards including video capture, streaming and transcoding; SSD storage; audio DSP; multi-port 10Gb and 25Gb Ethernet; SAS or SATA host bus adapter; and other specialty types.
Not sure if a card you own or are considering is compatible? We’ve put together a compatibility list that identifies many cards conforming to Thunderbolt technology requirements and organized by fit and power compatibility with specific expansion systems.

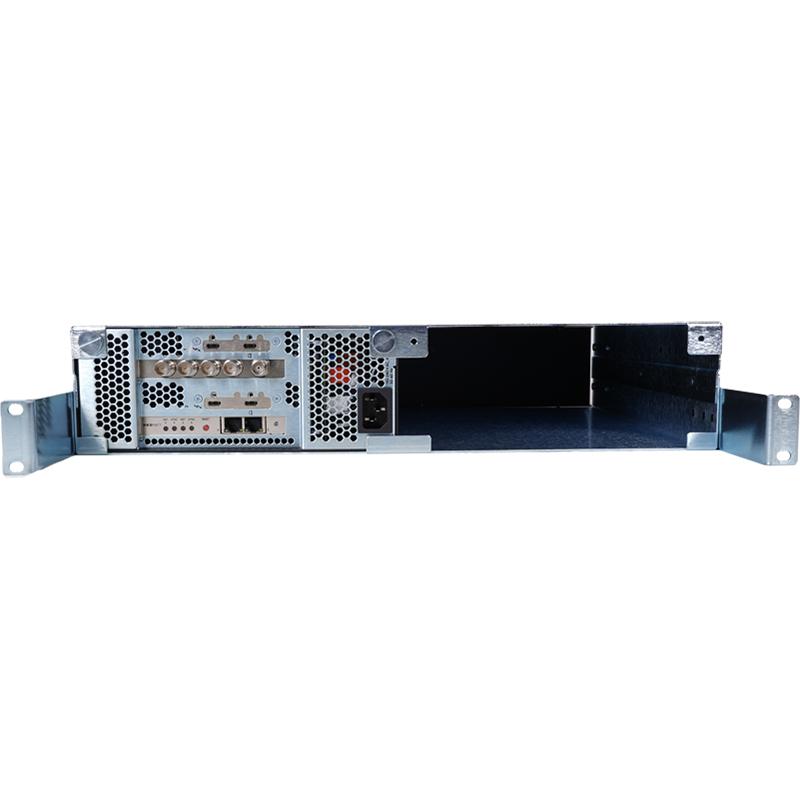

Echo II DV T5 Module — the core component of Echo II DV T5 Rackmount — occupies half of the rackmount enclosure, leaving space for an additional Sonnet expansion module to customize the system for your specific needs. If your computer (such as the M4 Max or M3 Ultra Mac Studio) has four Thunderbolt 5 buses, you can install a second Echo II DV T5 Module to fully harness your system’s capabilities, enabling four high-performance PCIe cards to run at maximum bandwidth. Alternatively, choose the Echo III Module to connect three full-height, full-length cards through a single Thunderbolt cable.
Built for Cool and Quiet Rackable Expansion Occupying a rack space 2U tall, the 16.5-inch deep Echo II DV T5 Rackmount is ideal for use in a wide range of popular mobile racks, carts, and rack cases, and in server rooms, too. Its heavy-duty steel enclosure provides secure mounting for the Echo II DV T5 Module and protection for the PCIe cards installed inside, and supports maximum airflow for cooling, regardless of where you install it in a rack.
Rated at 17dBA
Echo II DV T5 Rackmount can be comfortably used in noise-sensitive environments. Delivering ultra-quiet operation, its dual Noctua fans operate at below the recommended 20dBA limit for recording and broadcast studios and spread their noise across a range of frequencies, reducing the impact at any one frequency. To further guarantee trivial noise levels, the fans are temperature-controlled, automatically speeding up and slowing down smoothly as necessary, and the enclosure supports optimized airflow over the installed cards to effectively and efficiently cool the system.
Echo II DV T5 Rackmount includes adjustable rackmount extension rails to enable the 2U enclosure to be installed securely in a variety of racks 16 to 24 inches deep.
Sonnet includes two Thunderbolt cables engineered to deliver Thunderbolt 5’s full bandwidth and power delivery performance. The cables are fully compatible with Thunderbolt 5, 4, and 3, and USB4 computers. Three Sonnet ThunderLok Thunderbolt connector locks are also included to prevent accidental cable disconnections.
ThunderLok Advantage
Many Sonnet Thunderbolt products featuring Thunderbolt ports come equipped with threaded mounting holes to securely attach a Sonnet ThunderLok connector lock, preventing Thunderbolt cables from accidentally disconnecting.
Performance numbers: 80Gb/s bi-directional data and up to 120Gb/s video stream performance.
Echo II DV T5 Rackmount is built with the features and quality you expect from a Sonnet expansion system, plus the Thunderbolt 5 interface you need for maximum performance. With 80 Gbps of bi-directional data speed — twice as fast as Thunderbolt 4 — and up to 120 Gbps for higher display bandwidth, you'll revolutionize your productivity.
Echo II DV T5 Rackmount features two dual-port, ultra-high speed Thunderbolt 5 interfaces that deliver the PCIe bandwidth needed to support most cards at maximum performance. While two ports are reserved for connecting your computer, the secondary ports enable connection of additional Thunderbolt or USB peripheral devices:
