Sonnet SF3 Series - SXS Pro Card Reader | Professional Dual-Slot SxS Card Reader for Computers with Thunderbolt 3 Ports

Sonnet

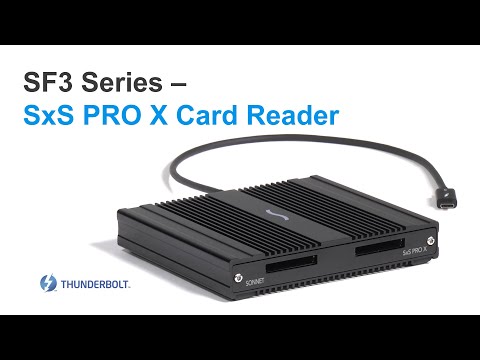

SF3 Series - SXS Pro Card Reader

Professional Dual-Slot SxS Card Reader for Computers with Thunderbolt 3 Ports

Product Code: SONSF32SXSPX

Suggested Retail Price £320+VAT

Where to buy Videos

Stock status: In Stock; available from resellers

Have a question about this product or want to request a demo?

Contact Our Technical Team

Kit List

View your Kit List

Warranty

All new Sonnet products purchased on or after January 1, 2019, have a two-year limited warranty, except as listed here. All new Sonnet products purchased on or before December 31, 2018, have a one-year limited warranty, except as listed here.

  • Superior Performance - Ingests files from two SxS cards at maximum speed
  • Dual SxS Slots - Enable simultaneous ingest of files from two cards for greater efficiency
  • 40Gbps Thunderbolt 3 Interface - Features dual Thunderbolt 3 (USB-C) ports; second port supports daisy chaining of up to five additional Thunderbolt peripheral devices(2)
  • Broad Card Support - Supports all SxS media, including SxS PRO+ E Series cards; XQD™ and SDHD™ cards supported when used with adapters(3)
  • Compact, Rugged, Stackable - Aluminum enclosure for rugged and reliable operation. Stackable design enables multiple SF3 Series card readers to occupy same footprint.
  • Thunderbolt Cable & ThunderLok Included - Includes 0.5-meter Thunderbolt 3 (40Gbps) cable and ThunderLok 3 Thunderbolt connector retainer clip to secure cable from accidental disconnections
  • Compatible with Thunderbolt 2 and Thunderbolt Macs - When used with an Apple® Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter
  • macOS and Windows Compatible

Mac Compatibility

  • Mac with Thunderbolt 3 ports
  • Mac with a Thunderbolt 2 or Thunderbolt port with an Apple Thunderbolt 3 (USB C) to Thunderbolt 2 Adapter
  • macOS® 10.12.1+

PC Compatibility

  • PC with Thunderbolt 3 ports(1)
  • Windows 10 (64-bit Edition Version 1703 or greater)

Specifications

  • Card Type: SxS
  • Dimensions: 144.8 x 129.5 x 25.4 mm / 5.75 x 5.1 x 1" (W x D x H)
  • Interface: Thunderbolt 3
  • Read Speed: Up to 880+ Mbps

Superior Performance

For years, pro digital video camera pioneers Sony and ARRI have used SxS professional memory cards for capturing footage on select cameras, relying on the cards for their durability and speed. With the move to shooting in 4K and higher frame rates, cards fill up faster than ever, and the need for a truly high-speed card reader with the fastest interface available is undeniable.

Sonnet's SF3 Series - SxS Pro Card Reader fills the bill. Featuring a 40Gbps Thunderbolt™ 3 interface, this device quickly ingests footage from SxS memory cards to any Mac® or Windows®(1) computer with Thunderbolt 3 ports—on location, in the studio, or in the edit suite—at the fastest speeds the cards will support.

Productivity Enhancer

The SF3 Series - SxS Pro Card Reader is the industry's first SxS card reader for Thunderbolt 3. This dual-slot reader takes advantage of Thunderbolt 3's 40Gbps bandwidth to ingest files simultaneously from two cards at maximum speed—more than double the average ingest speed of USB 3.0 card readers. Using the Sonnet SxS reader enables you to ingest footage from multiple cards in much less time for a significantly more efficient workflow.

Thunderbolt 3 - The USB 3 That Does It All

The SF3 Series - SxS Pro Card Reader includes two Thunderbolt 3 (USB-C) ports; the first connects it to your computer, while the second supports daisy chaining of up to five additional Thunderbolt peripheral devices(2) to a single port on your computer. The reader includes 10Gbps USB 3.1 Gen 2 support, meaning you can connect a USB device to the second port using the proper cable or adapter. The SxS reader also provides full support for connecting up to two 4K displays @ 60Hz or one 5K display @ 60Hz(4). For connected devices requiring extra power, 15 watts is provided to bus-powered other devices, such as the SF3 Series – CFast 2.0 Pro Card Reader.

Broad Card Support - Including XQD & SDXC

The SF3 Series - SxS Pro Card Reader supports all generations of SxS media, up to the latest E Series cards. When used with proper adapters (sold separately), you can even use XQD and SDXC cards with this reader.

Compact, Rugged, and Stackable - Ingest Four or More Cards Simultaneously

The SF3 Series - SxS Pro Card Reader—measuring a compact 5.75 inches wide by 1 inch high by 5.1 inches deep—is suitable for use in any workspace. The reader's extruded aluminum shell makes it lightweight, yet rugged enough to be transported in an equipment bag without fear of damaging the case. SF3 Series card readers are designed to be stacked, allowing multiple readers such as additional SxS Pro Card Readers and Sonnet's CFast 2.0 Pro Card Readers to occupy the same footprint. The SxS reader enables you to daisy chain multiple readers to ingest four, six or more cards simultaneously, taking advantage of Thunderbolt 3's 2,750 MB/s bandwidth.

Thunderbolt 3 (40Gbps) Cable and ThunderLok 3 Included

Sonnet includes a 0.5-meter Thunderbolt 3 cable to connect the SF3 Series - SxS Pro Card Reader to your computer, and a Sonnet ThunderLok 3 Thunderbolt connector retainer clip(5) to secure the cable to the reader. Accidentl cable disconnect can lead to data loss. Sonnet's ThunderLok 3 secures the Thunderbolt cable to the SxS reader, and is easy to install and use—just slide it over one end of the cable, and then plug in the connector and secure it to the reader by turning a thumbscrew. Because of its unique design, ThunderLok does not attach to the connector, but remains on the cable so it won't get lost when not in use.

Technical Notes:

  1. Windows computers require the latest firmware (BIOS) and Thunderbolt drivers to support this product. Check with your computer manufacturer for update information.
  2. Second Thunderbolt 3 port supports Thunderbolt 3 devices natively. Also supports Thunderbolt and Thunderbolt 2 devices on Macs when used with the Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter, sold separately.
  3. XQD and SDXC card adapters sold separately.
  4. One 4K monitor directly supported. Two 4K monitors requires either a 4K monitor with multi-stream transport support (DP out), or a Thunderbolt 3 to Dual DisplayPort adapter. 5K monitor requires a Thunderbolt 3 to Dual DisplayPort adapter.
  5. ThunderLok 3 compatible with Sonnet 0.5-meter Thunderbolt 3 cables, but not with Sonnet 1-meter Thunderbolt 3 cables.

Big Sur Compatiblity

THUNDERBOLT 3 PRODUCTS SKU Big Sur Intel Macs Big Sur M1 Macs
Echo 11 Thunderbolt 3 Dock SON-ECHO-DK11-TB3 √ (M1 Macs support only one monitor in TB Docks)
Solo5G USB 3 to 5GBASE-T Ethernet Adapter SON-SOLO5G-USB3 √ (Update driver to version 1.4.12) X Marvell driver update TBD
Solo10G Thunderbolt 3 to 10GBASE-T Ethernet Adapter SON-SOLO10G-TB3
Solo10G Thunderbolt 3 to SFP+ 10 Gigabit Ethernet Adapter (SFP+ included) SON-SOLO10G-SFP-TB3
Twin10G Thunderbolt 3 Edition - Dual Port 10GBASE-T Ethernet Adapter SON-SOLO10G-SFP-TB3 Sonnet X550 driver update coming Q1 2021
Twin10G SFP+ Thunderbolt 3 Edition - Dual Port SFP+ 10 Gigabit Ethernet Adapter SON-TWIN10GCSFP-TB3 Sonnet 82599 driver update coming Q1 2021
Echo Express SEL Thunderbolt 3 One-Slot Low-Profile PCIe Card Expansion System SON-ECHOEXPSE1-TB3 √ (PCIe card must have M1 compatible driver)
Echo Express SE I Thunderbolt 3 One-Slot PCIe Card Expansion System SON-ECHOEXPSEL-TB3 √ (PCIe card must have M1 compatible driver)
Echo Express SE IIIe Thunderbolt 3 Three-Slot PCIe Card Expansion System SON-ECHOEXPSE3-E-TB3 √ (PCIe cards must have M1 compatible drivers)
Echo III Desktop Thunderbolt 3 Three-Slot PCIe Card Expansion System SON-ECHO3D-TB3 √ (PCIe cards must have M1 compatible drivers)
Echo III Rackmount Thunderbolt 3 Three-Slot PCIe Card Expansion System SON-ECHO3R-TB3 √ (PCIe cards must have M1 compatible drivers)
2018 xMac mini Server with one full-length and one half-length slot Thunderbolt 3 Edition SON-XMACMSA-TB3 √ (PCIe cards must have M1 compatible drivers)
eGFX Breakaway Box 550 SON-GPU550W-TB3 X (M1 Macs do not currently support eGPUs)
eGPU Breakaway Box 750 SON-GPU-750W-TB3 X (M1 Macs do not currently support eGPUs)
eGPU Breakaway Box 750ex SON-GPU-750WEX-TB3 X (M1 Macs do not currently support eGPUs)
eGPU Breakaway Puck Radeon RX 5500XT SON-GPURX5500XT-TB3 X (M1 Macs do not support Dual Display TB Adapters)
eGPU Breakaway Puck Radeon RX 5700 SON-GPURX5700-TB3 X (M1 Macs do not support Dual Display TB Adapters)
Thunderbolt 3 to Dual DisplayPort Adapter - Supports two 4K Displays SON-TB3DDP4K X (M1 Macs do not support Dual Display TB Adapters)
Thunderbolt 3 to Dual HDMI Adapter - Supports two 4K Displays SON-TB3DHDMI X (M1 Macs do not support Dual Display TB Adapters)
PROFESSIONAL MEDIA READERS SKU Big Sur Intel Macs Big Sur M1 Macs
SF3 Series - CFexpress/XQD Thunderbolt 3 Pro Card Reader SON-SF3-2CFEX √ CFExpress | X Sony XQD driver update TBD
SF3 Series - CFast 2.0 Thunderbolt 3 Pro Card Reader SON-SF32CFST
SF3 Series - RED Mini-Mag Thunderbolt 3 Pro Card Reader SON-SF3-2RMM
SF3 Series - SxS Thunderbolt 3 Pro Card Reader SON-SF32SXS X Sony SxS driver update TBD
Thunderbolt Pro P2 Card Reader - Thunderbolt 2 SON-TBP2 Sonnet P2 driver update coming Q1 2021 Sonnet P2 driver update coming Q1 2021
Echo ExpressCard Pro SxS Media Reader - Thunderbolt 2 SON-ECHOPROE34 X Sony SxS driver update TBD
SDHC Adapter for SxS Camera Slot or SF3 Series SxS Reader SON-SDSXS-E34
Shoot. Ingest. Edit!

Now that pretty much every camera captures to digital media, choosing the right kind of reader has never been more important. For 35 years Sonnet has pioneered innovative and award-winning products that enhance computer performance and connectivity. This blog looks at Sonnet’s expanding range of professional media readers.

Sonnet Technologies at BVE 2018

NEW: Thunderbolt™ 3 External Graphics (eGPU) SolutionsAt BVE 2018, Sonnet will showcase its new eGFX Breakaway™ Box 650, a Thunderbolt™ 3 to eGPU PCI Express® (PCIe®) card expansion system designed and qualified specifically for large, power-hungry video graphics processing unit (GPU) cards, including the AMD Radeon™ RX Vega 64 and overclocked NVIDIA® GeForce® GTX 10 series-based cards. The 650 model enables the use of all GPU cards that support connecting to a computer over Thunderbolt — such as AMD Radeon R9, RX, RX Vega, and Pro WX models and NVIDIA GeForce GTX 9 and 10 series, Titan X and Xp, and Quadro® models — with Thunderbolt 3-equipped computers, providing GPU support for computationally intensive applications and games. (Lists of supported computers and GPU cards are available at www.sonnettech.com/product/egfx-breakaway-box.html). Mac®- and Windows®-compatible, the new Sonnet system is the coolest and quietest eGFX box on the market, with a built-in, variable-speed, temperature-controlled fan that quietly and effectively cools the installed card.

Sonnet Launches Dual-Slot SxS Pro Card Reader

Sonnet Technologies today announced the launch of its new SF3™ Series — SxS™ Pro Card Reader, the second in a new family of professional media readers that feature a 40Gbps Thunderbolt™ 3 interface. The Sonnet reader employs dual card slots to take advantage of the tremendous 2,750 MB/s bandwidth Thunderbolt 3 offers. Sonnet's latest Pro Card Reader, the industry's first SxS card reader with Thunderbolt 3, can ingest files simultaneously from two cards at their maximum speeds, and is also compatible with SD™ and XQD™ media cards when used with Sonnet SDHC Adapters and Sony XQD ExpressCard® Adapters, respectively. Compatible with Mac® and Windows® computers with Thunderbolt 3 ports, the Sonnet reader is also compatible with Mac computers with Thunderbolt 2 or Thunderbolt ports when used with the Apple® Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter.

  • 1 x SF3 Series - SxS Pro Card Reader
  • 1 x Power adapter
  • 1 x Power cable
  • 1 x 0.5-meter Thunderbolt 3 cable
  • 1 x ThunderLok 3 retainer clip
  • 1 x Documentation
