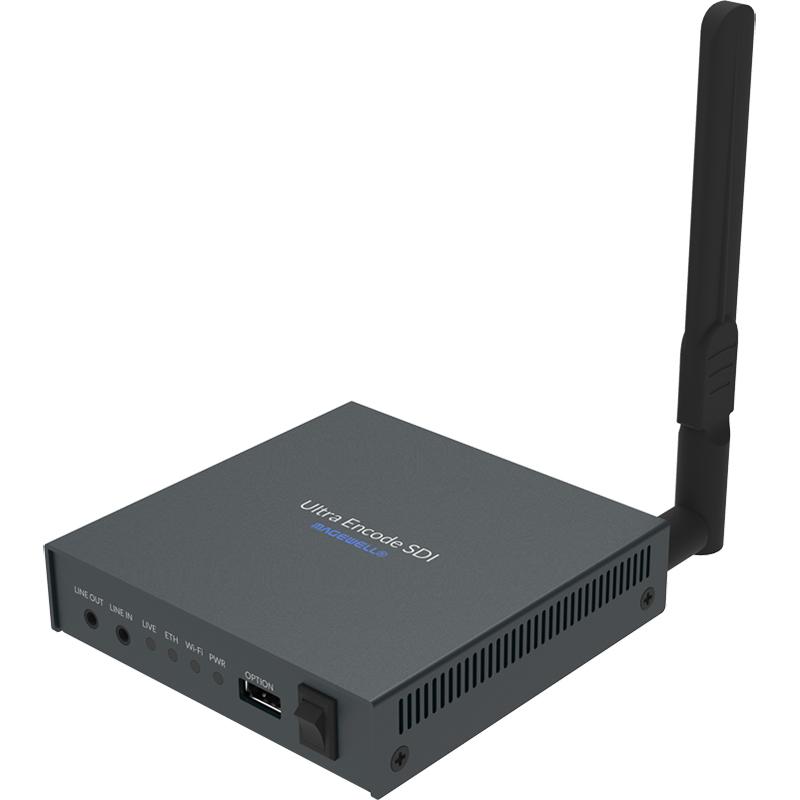

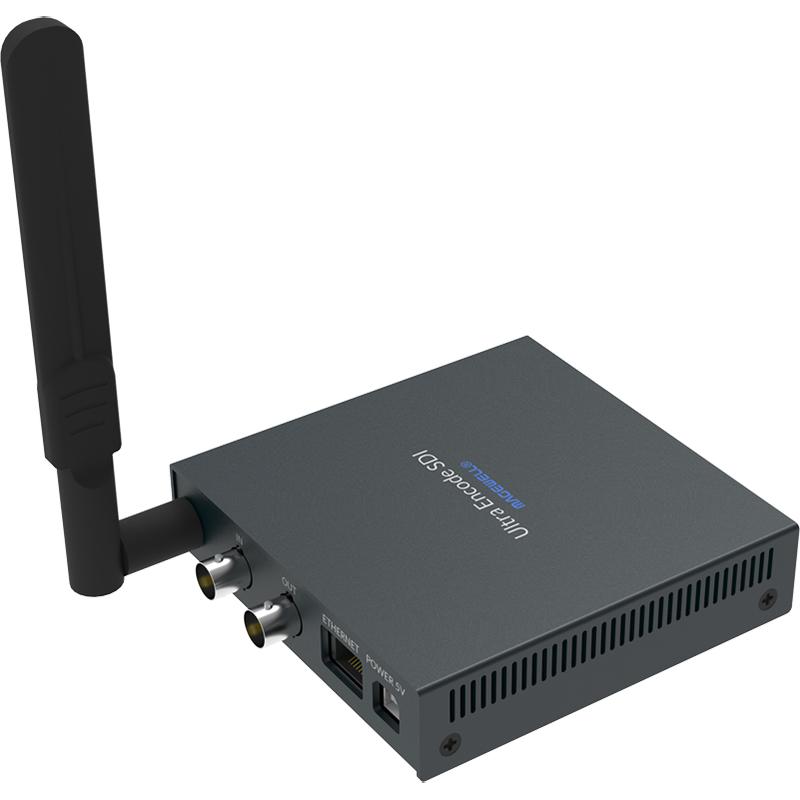

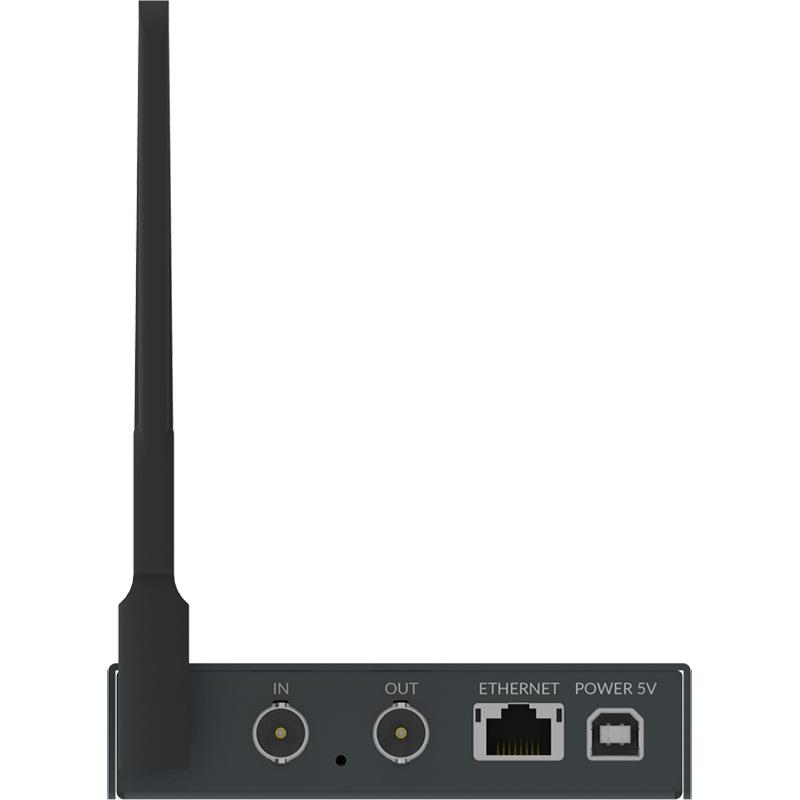

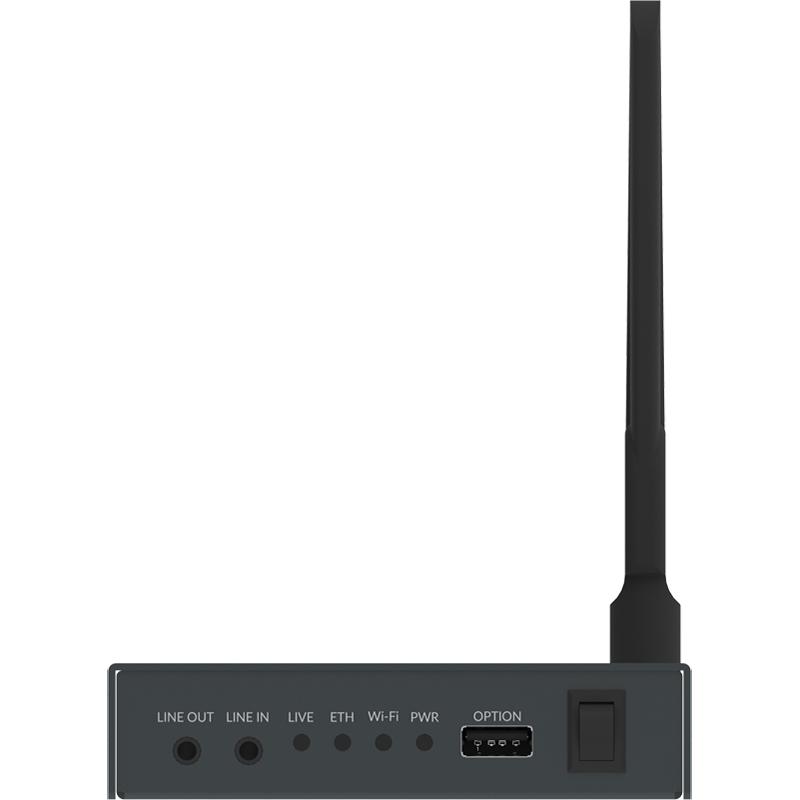

Ultra Encode SDI

• Flexible & Affordable Universal Encoder
• Live H.264/H.265 streaming
• Supports streaming protocols including SRT, NDI®|HX, HLS & more
• Suitable for various network environment

Input Features
• Support for up to 2048x1080 60fps input and loopthrough signals
• Input & loopthrough 16-Channel SDI embedded audio
• Input audio from 3.5 mm LINE IN

Encoding Features
• Dual stream encoding profiles: main stream and sub stream (Max bitrate: 16Mbps)
• Support for H.264/HEVC video encoding
• Encoding 2-channel AAC at 48kHz, 16-bit

Streaming Features
• Supported streaming protocols: RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI®|HX2/HLS/TS over UDP/TS over RTP
• Allow streaming to multiple destinations simultaneously (select protocols)

Others
• Internet connectivity via wired Ethernet and wireless network
• Remote control via Web GUI and Control Hub
• Provide HTTP APIs

EAN # : 6936572401379
