Datavideo DAC-70

Up / Down / Cross Converter

Suggested List Price: £425+VAT

Product Code: DATA-DAC70

Where to buy

Stock status: Stock due on 24/11/2017

Qty:

Also consider

Datavideo DAC-60

Datavideo DAC-60

SDI to VGA Converter
Datavideo DAC-8P

Datavideo DAC-8P

SDI to HDMI Converter
Datavideo DAC-9P

Datavideo DAC-9P

HDMI to SDI Converter
Datavideo TLM-170P

Datavideo TLM-170P

17.3" HD/SD TFT LCD Monitor
Datavideo MB-5

Datavideo MB-5

Mounting Bracket for DAC Series
Datavideo MB-4

Datavideo MB-4

Battery adapter / mount for DAC series
Datavideo DAC-45

Datavideo DAC-45

4K Up / Down / Cross Converter

Other Video Scalers

tvONE 1T-C2-100

tvONE 1T-C2-100

Down Converter
tvONE 1T-C2-150

tvONE 1T-C2-150

Down Converter with Overlay
tvONE 1T-C2-250

tvONE 1T-C2-250

Up Converter with Overlay
tvONE 1T-C2-400

tvONE 1T-C2-400

PC/HD Video Scaler
tvONE 1T-C2-750

tvONE 1T-C2-750

Dual-PIP DVI-I Scaler
tvONE 1T-C2-760

tvONE 1T-C2-760

Single PIP DVI Scaler

The one mini converter that should be in every kit bag. Whatever kit freelancers or clients ask you to use for a shoot, this device will get you out of jail: up, down and cross convert; ingest VGA signals into an SDI workflow; embed stereo audio into a video feed.

Datavideo Distribution Amplifier and Converters

A range of Converters allowing High Quality conversion between one connection to another all in real time.

Datavideo DAC-70 Up Down Cross Converter

3G/HD/SD Up/Down/Cross converter

  • 3G/HD/SD Up/Down/Cross convert
  • Audio/HDMI/SDI/VGA input
  • 3G/HD/SD SDI and HDMI output
  • Can be rackmounted using optional RMK-2 2RU Rack solution
  • DC 12V, 3.6 watts

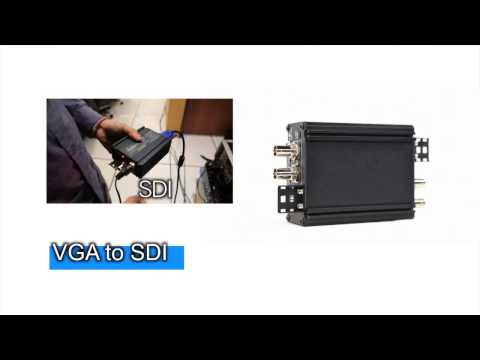

Datavideo DAC-70 up/down/cross converter is designed to convert video signals from VGA, HDMI, SDI with Audio input to 3G/HD/SD SDI ouptuts.

Perfect for connecting a VGA/HDMI output from computer to SDI devices over long distance SDI cable. Solutons like lecture theater, church, auditorium room and conference hall.

Video Input formats

  • SD-SDI: 525i, 625i
  • 3G-SDI: 1080p60/50, 1080p59.94 (Level A)
  • HD-SDI: 1080i60/50, 1080p30/25/24, 1080p29.97, 1080p23.98, 1080i59.94, 720p60/50, 720p59.94
  • HDMI: (YUV/RGB): 1080p60/50, 1080p59.94, 1080p30/25/24, 1080p29.97, 1080p23.98, 1080i60/50, 1080i59.94, 720p59.94, 720p60/50, 576p, 480p, VGA, 1600x1200@60Hz, 1400x1050@60Hz, 1366x768@60Hz, 1280x1024@60Hz, 1024x768@60Hz, 800x600@60Hz

Video Output formats

  • SDI / HDMI (YUV: 4:2:2): 1080p60/50, 1080p59.94, 1080p23.98/29.97/24/25/30, 1080i60/50, 1080i59.94, 720P60/50, 720P59.94, 525i, 625i

Supported Audio formats

  • SDI embedded Audio: Up to 8-CH, PCM 48KHz
  • HDMI embedded Audio: up to 8-CH, PCM 96KHz
    - Stereo audio input: 2-CH, PCM 48KHz

* USB interface for firmware upgrade

Download the latest Firmware and Software

  • 1 x DAC-70
  • 1 x AD Switch DC 12V
  • 1 x DIP switch Pin 8 label
