BirdDog A200 GEN 2 | Weatherproof Full NDI PTZ Camera

BirdDog

A200 GEN 2

Weatherproof Full NDI PTZ Camera

Product Code: BD-A200GEN2

Suggested Retail Price £3,781+VAT

Where to buy Videos

Kit List

View your Kit List

Technology Guides


  • Weatherproof Full NDI PTZ Camera
  • Full NDI using BirdDog’s custom NDI silicon chip
  • Sony CMOS Backlit Sensor
  • Full Sony Image Module
  • 1080p60
  • 30x Optical Zoom
  • IP67 rating for outdoor use. Corrosion Resistant treated housing for salt spray environment
  • -40°C to +60°C operating temperature for the harshest environments
  • Compatible with BirdDog Comms, the world’s best NDI Intercom System
  • Compatible with BirdDog Central, the world’s best NDI delivery platform
  • Compatible with BirdDog PTZ Keyboard
Gen 2 Updates
  • Features same colour tools as P200
  • Full Colour Matrix
  • 72 Additional Gamma Positions
  • Now support Cam Control for Remote Shading
  • Design tweaks for improved protection against elements
  • Improved IR Blaster when using in low light situations

Keep your NDI® dry

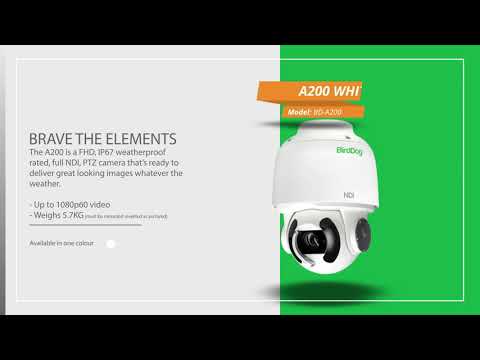

A200 PTZ camera utilises BirdDog’s custom NDI® silicon chip and leverages an impressive Sony CMOS backlit sensor and full Sony Image Module.

Designed for serious production the image quality of A200 is best in class. Built on a true Sony Image module with Sony CMOS backlit sensor, P200 has super fast focus, incredibly sharp images, and amazingly fast zoom. A200 has frame rates up to 1080p60, 30x optical zoom, and outputs SDI, HDMI and NDI® simultaneously.

A200 is IP67 rating for outdoor and indoor use. Corrosion Resistant treated housing for salt spray environment. -40°C to +60°C operating temperature. It even has a rain wiper to keep water off the lens. 3.5mm audio connectors allow P100 to work with BirdDog Comms, the world’s first NDI audio intercom platform. Comms is a Windows 10 application that can run on any Windows 10 compatible computer, laptop, or surface for a touch screen experience.

A200 has been designed for the most demanding on image quality. The superior optics make P200 perfect for Sports, Broadcast, Live Event Production, IMAG, Education, and any other application where quality matters. A200 is also compatible with BirdDog PTZ Keyboard for ultimate control.

New Colour Matrix

Dialling in your cameras just levelled up. A200 now has a full colour matrix with individual saturation and hue control over Red, Green, Blue, Cyan, Yellow and Magenta, all with 64 levels of control.

72 levels of Gamma

From negative to positive gamma positions you can now dial in those blacks with an unprecedented level of control.

FREE Cam Control. Colour match in seconds

The Cam Control app is the easiest and most user-friendly way to dial in BirdDog cameras. Simply load on a Windows 10 machine on the same network as your BirdDog cameras and access all functions of the camera through a beautiful interface. Quickly dial in the look you like and copy settings across multiple cameras in seconds. And it’s 100% FREE with all BirdDog PTZ cameras.

Download the free BirdDog RESTful API and program your own automation for all BirdDog hardware endpoints, including cameras.

  BirdDog Eyes P100
Eyes P100
BirdDog Eyes P200
Eyes P200
BirdDog Eyes A200
Eyes A200
BirdDog Eyes A30
Eyes A300
BirdDog Eyes P40
Eyes P400
BirdDog P4K
P4K
Description Indoor HD camera with NDI, HDMI & SDI outputs Super-zoom indoor HD camera with NDI, HDMI & SDI outputs Outdoor HD camera with HD NDI & SDI All-weather HD NDI/SDI camera with 30x zoom 4K PTZ with professional colour management tools 4K NDI PTZ Camera with Professional Level Colour  Broadcast-level 4K PTZ with superb images in all lighting conditions

IMAGING

Image Sensor 1/2.86" CMOS 2.2MP 1/2.8" CMOS 2.13MP 1/2.8" CMOS 2.13MP 1/2.8" CMOS 2.13MP 1/2.5 inch CMOS 8.5MP 1.0-type back-illuminated Exmor R CMOS sensor 14.2MP
Lens 4.7 - 47mm 4.3 - 129mm 4.3 - 129mm 4.3 - 129mm 4.4-88.4mm Zeiss Vario-Sonnar T lens
9.3 - 111.6mm
Optical Zoom 10x 30x 30x 30x 20x 12X
12x Digital Zoom Yes Yes Yes Yes 30x in 4K, 40x in Full HD 18X zoom at 4K, or 24X zoom at FHD.
Horizontal Angle of View 69.9º(W) - 6.43º(T) 63.7º(W) - 2.3º(T) 63.7º(W) - 2.3º(T) 63.7º(W) - 2.3º(T) 70.2°(W) – 4.1°(T) 64.6°(W) – 6.1°(T)
Aperture F1.6(W) - F3.0(T) F1.6(W) - F4.7(T) F1.6(W) - F4.7(T) F1.6(W) - F4.7(T) F2.0(W) – F3.8(T) F2.8(W) – F4.5(T)
Wide Dynamic Range - - - - Yes Yes
ND Filter - - - - Yes Yes
Image Stabiliser - Yes Yes Yes Yes Yes
Colour Matrix Yes Yes Yes Yes Yes Yes
Gamma - 72 Gamma Positions 72 Gamma Positions 72 Gamma Positions Standard, Straight, 512 pattern
Gamma Level / Black Level - - - - Yes (15 step) / Yes (97 step)
Genlock - - - - Yes Yes

AV INTERFACE

SDI Yes Yes Yes Yes Yes (6G) Yes (6G, dual 3G)
HDMI output Yes Yes - - Yes Yes
1080i, 1080p & 720p Video Formats Yes Yes Yes Yes Yes Yes
4K (up-to 30fps) - - - - Yes Yes
3.5mm Audio In | Out Yes Yes Yes Yes Yes Yes
Dante Support Yes, with optional hardware licence

NETWORK

Full NDI Yes Yes Yes Yes Yes Yes
NDI – discovery, configuration and control Yes Yes Yes Yes Yes Yes
Full control via Web/Mobile UI Yes Yes Yes Yes Yes Yes

ENVIRONMENTAL

Operating Temperature -10 to +50 (ºC) -10 to +50 (ºC) -40 to +60 (ºC) -40 to +60 (ºC) -10 to +40 (°C) -10 to +40 (°C)
IP67, corrosion resistant treated housing - - Yes Yes - -
Wind load durability <up-to60m/s - - - Yes - -

CONTROL INTERFACE

NDI IP PTZ Control Yes Yes Yes Yes Yes Yes
2x RJ45: RS232/RS422/RS485 Yes Yes Yes Yes Yes Yes
VISCA / Pelco D Serial Control Protocol Yes Yes Yes Yes Yes Yes
Tally Light - Yes - - Yes (front and back) Yes (front and back)
Free Cam Control Yes, remote shading and colour matching

POWER & DIMENSIONS

Power Input 12v DC, PoE+
(IEEE 802.3at)
12v DC, PoE+
(IEEE 802.3at)
AC 24v (Option)
PoE 97W Ready (BirdDog PoE 97W Injector needed, optional)
AC 24v (Option)
PoE 97W Ready (BirdDog PoE 97W Injector needed, optional)
12v DC, PoE++
(IEEE 802.3at)
12VDC, PoE++
(IEEE 802.3at)
Dimensions 145x145x154mm 160x178x220mm 210x210x333 180x180x423mm 142x159x217mm 165x196x247mm
Weight 1.0Kg 2.0Kg 5.5Kg 10.2Kg 2.7Kg 3.4kg
BirdDog PoE Power Injector
PoE Power Injector

97W PoE Power Injector for Eyes A200 / Eyes A300
[BD-A-PP97]

BirdDog Ceiling Mounting Kit
Ceiling Mounting Kit

Ceiling Mounting Kit for Eyes A200
[BD-A200-CMS]

BirdDog Pole Mount Adapter
Pole Mount Adapter

Pole Mount Adapter for Eyes A200 / Eyes A300
[BD-A-PMA]

BirdDog Corner Mount Adapter
Corner Mount Adapter

Corner Mount Adapter for Eyes A200 / Eyes A300
[BD-A-CMA]

BirdDog Wall Mounting Kit
Wall Mounting Kit

Wall Mounting Kit for Eyes A200
[BD-A200-WM]

BirdDog Infrared Remote Control
Infrared Remote Control

Infrared Remote Control for all BirdDog cameras
[BD-RC-1]
