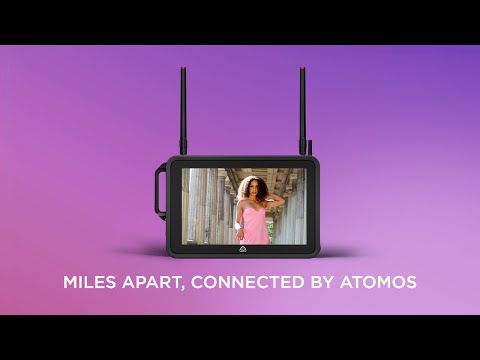

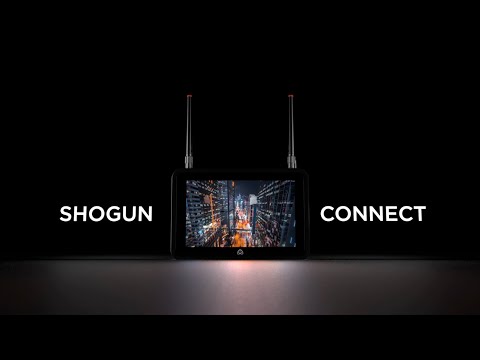

Atomos Shogun CONNECT | All-in-one device for HDR monitoring, RAW recording and a connection to the world
Product Code: AOATOMSHGCO1
Product Discontinued
7-inch monitor-recorder with integrated networking for enhanced cloud workflows
Features
Description
Shogun CONNECT combines portable monitoring and professional RAW recording, with support for integrated and cloud-based workflows.
Shogun CONNECT builds on the pedigree of the ground-breaking Shogun product line. Every detail has been redesigned from the ground up to make Shogun CONNECT the most powerful and versatile device ATOMOS has ever created.
Featuring a much brighter 7-inch 2000nit screen and multiple recording options, Shogun CONNECT provides a premium experience for HDR monitoring and RAW recording. In addition, it includes a loop through 12G SDI IN and OUT interface, which can support SDI RAW, and is able to send a video signal to multiple devices.
As you would expect from an ATOMOS device, Shogun CONNECT combines high-quality monitoring and many different industry-standard recording formats. It also transforms digital cinema, mirrorless, and DSLR cameras into fully integrated devices that support a range of advanced cloud-based workflows.
The new 7-inch, daylight-viewable SuperAtom IPS touchscreen is more responsive and is perfect for outdoor use, even in direct sunlight, although it can be adjusted for darker environments to avoid glare.
From individuals to large-scale cinema productions, Shogun CONNECT has been built to fit into any camera rig. It features a versatile mount that can be adapted to suit different industry-standard equipment from a wide range of manufacturers. Once locked in place the mount is highly secure and offers anti-rotation settings, so you can trust Shogun CONNECT to remain in place at all times.
Shogun CONNECT offers a comprehensive range of monitoring tools including a waveform, focus peaking, false colour, and frame guides to help you get the composition and exposure exactly right. The AtomOS software is so easy to use and the control it provides over your images, you’ll never want to resort to relying on your camera screen or EVF again.
Shogun CONNECT is built around the latest ATOMOS silicon, the AtomIC3. The processor provides all the performance to handle the demands of the very latest cameras. It can manage higher frame rates and increased resolutions. Currently the device supports the RAW output of various cameras up to 4K at 120fps and 12-bit 8K ProRes RAW up to 30fps via HDMI or SDI.
The AtomRemote app for iOS and macOS offers an array of external controls for Shogun CONNECT*. The app enables you to perform a range of configuration tasks and operations up to 15 meters away from the device via Bluetooth LE. Input options include the ability to define camera connections, select Gamma/EOTF, and adjust Gamut settings. For monitoring, AtomRemote can be used to control playback, choose monitoring modes, apply custom 3D LUTs, or view image analysis tools including exposure and focus. Output controls include options for 4K to HD, LUT preview, and HDR output.
* Scheduled for release Q4/2022
ATOMOS AirGlu™ adds wireless timecode, sync, and control technology to Shogun CONNECT. AirGlu locks multiple ATOMOS devices or compatible cameras, audio recorders, and software applications together so that they share the same frame-accurate timecode. It is also able to relay recording, battery status, and disk capacity information to the server unit. Any AirGlu device can act as the server unit, which means you’ll no longer need a huge budget or get involved in time consuming post-production workflows to produce perfectly synchronized, multi-camera video.
To save space and support longer recordings, many cameras record compressed 4:2:0 8-bit video internally. If the camera is able to output video via HDMI, the quality can often be preserved in a 4:2:2 8-bit or 10-bit format. Shogun CONNECT can record more color information and immediately add value to your production with your existing camera rig. Additionally, if you’re shooting Log footage, the ability to bypass internal compression will offer the best possible dynamic range. Shogun CONNECT is designed to maximize the quality of your videos and allow you to extend every aspect of your creative vision. Shogun CONNECT also includes 12G-SDI input, the standard on high-end cinema cameras, including the Sony FX series, Panasonic EVA1, and Canon EOS C series. The robustness and utility of SDI is critical for the productions that rely on it. SDI-RAW provides the ultimate experience in terms of flexibility and quality, which makes Shogun CONNECT the ideal choice for big budget filmmakers around the world.
| Resolution | Frame Rate |
|---|---|
| 4k DCI | up to 4Kp60 |
| 4k UHD | up to 4Kp60 |
| 2K DCI 2046 x 1080 | up to 2Kp60 |
| FHD 1920 x 1080 Progressive | up to 1080p120 |
| FHD 1920 x 1080 PsF | only via Pull down to P |
| FHD 1920 x 1080 Interlaced | 1080i50 / 1080i60 |
| 1280 x 720p | 60p |
| 8K RAW | up to 8Kp30 Via HDMI |
| 6K RAW | up to 6Kp60 Via HDMI & 6Kp30 SDI |
| 4K RAW | up to 4Kp120 via HDMI / SDI |
| 3.5K Anamorphic RAW | up to 3.5Kp60 via HDMI |
| 2K RAW | up to 2Kp240 via SDI |
With flexible options for industry standard formats and RAW codecs, Shogun CONNECT records visually lossless “hero” files that are ready for editing and proxy/sharable files that look great but are quick to upload. Shogun CONNECT is designed to be versatile and meet the requirements of your workflow. ATOMOS understands the value in being able to select the format, quality, resolution, frame rate, or file size that best suits the needs of your production.

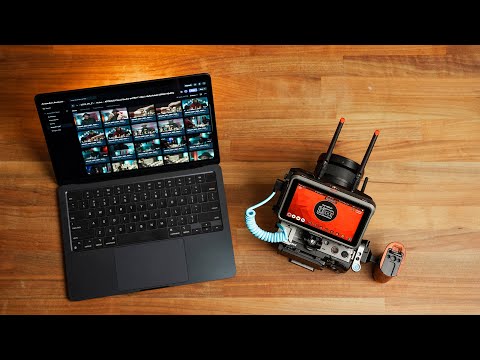

The newly designed 7-inch HDR touchscreen on Shogun CONNECT ensures that you always see an accurate representation of your image. You can adjust exposure, check focus, apply overlays, custom LUTs, and zoom the picture to examine specific details. The tools are designed to provide confidence that what you see is what is recorded. Shogun CONNECT can be used to share a live feed to the director, producer, or client. It can also be used to playback footage to creatives and teams on-set. And with support for Adobe Camera to Cloud (C2C) powered by Frame.io, collaboration can happen remotely too. Shogun CONNECT offers more opportunities to perfect each shot and collaborate for the crews on-set, on location, or anywhere in the world. The versatile feature set also offers many advantages to speed up post-production and finishing processes.
Shogun CONNECT supports popular Log formats from Sony, Canon, Panasonic, ARRI, RED, and JVC. These can be used to preview SDR or HDR LUTs in real-time. You can choose from up to eight custom 3D LUTs at any one time. Simply select LUT (*.cube) files from the removable SSD card. LUTs can also be displayed during playout or burnt to recorded files.
The ability to record up to 8K using advanced edit-ready formats including ProRes RAW, ProRes, and Avid DNxHD/HR requires fast, robust, and expansive storage. Shogun CONNECT supports removable SSD drives, which provide the space and sustained performance to meet these needs. AtomX SSDmini drives are more compact than standard SATA SSDs and offer an affordable alternative to an SD card of similar capacity or performance. They offer up to 2TB storage, sequential read speeds of up to 550MB/s and write speeds up to 500MB/s. The AtomX SSDmini drives are able to record up to 150 minutes of 4K ProRes. Measuring 8cm long, 7.5cm wide and weighing as little as 88g, the custom-built drive neatly fits into the Shogun CONNECT without impacting the overall footprint of the device.
With Shogun CONNECT the only limitation to how much you can record is the size of the SSD. Because AtomX SSD drives provide much greater recording capacity than SD cards and reduce the sustained performance burden associated with in-camera recording, which makes extended takes and event recording significantly more manageable.
News
As we breeze into another month of 2023, Holdan now looks forward to the Societies of Photographers London Photo Convention and Trade Show spanning from 16th -18th March 2023. Professionals to enthusiasts are welcome to attend the convention and trade show – which we recommend is a must.
As the production and creative industries become more and more competitive, the need for a quick and efficient, yet high-quality post-production workflow has become even more prominent. Although some of this technology has been around for a while, like with most new technology it’s expensive to start with. This usually means it’s not within the budget for most creatives & production companies, until now.
The Photography Show runs from 17th to 20th September at the NEC Birmingham and showcases over 250 imaging brands with masterclasses, seminars, and live demos from professionals in the industry.
After an absence of 3 years, the Media Production & Technology show (MPTS) was back with a bang as over 8,000 people literally queued around the block for the 2-day event at London Olympia. Holdan showcased the latest technology with a striking Tech Lounge, a mocktail bar envisioned and created by our own Graphic Designer Jo Mohan, working alongside Design Consultant Martha Camarillo.
After an absence of three years, the NAB Show is back with a rash of signature product launches. It’s probably no coincidence that the past 36 months have seen little in the way of innovation in the broadcast and professional video industry, apart from a slew of mirrorless cameras. The unstoppable force that is the engineer needs the immovable object – the trade show – to get the creative juices flowing it would seem.
Firmware Updates
For more information on the new features, improvements and known limitations, refer to the release notes for AtomOS 10.84.00.
Features:
Pair your SHOGUN CONNECT and get ready to access a powerful collection of new cloud-based video production services
Note: If you've previously added your SHOGUN CONNECT to your account for Streaming, you don't need to add or re-pair it again.
You can now stream to Facebook Live and Custom RTMP Destinations
Note: Due to the large number of streaming and social media platforms that accept custom RTMP sources for live streaming, it is not possible to test every available option. Please take a look at our FAQ article that lists the platforms that have been tested so far, and don't hesitate to reach out to our support team if a streaming platform you'd like to use isn't available. https://atomos.zendesk.com/hc/en-us/sections/205529868-Setup-connectivity
Note: Currently, this device only supports streaming to sites that don't require authentication unless they accept it as part of the URL.
Download the latest Firmware and Software
