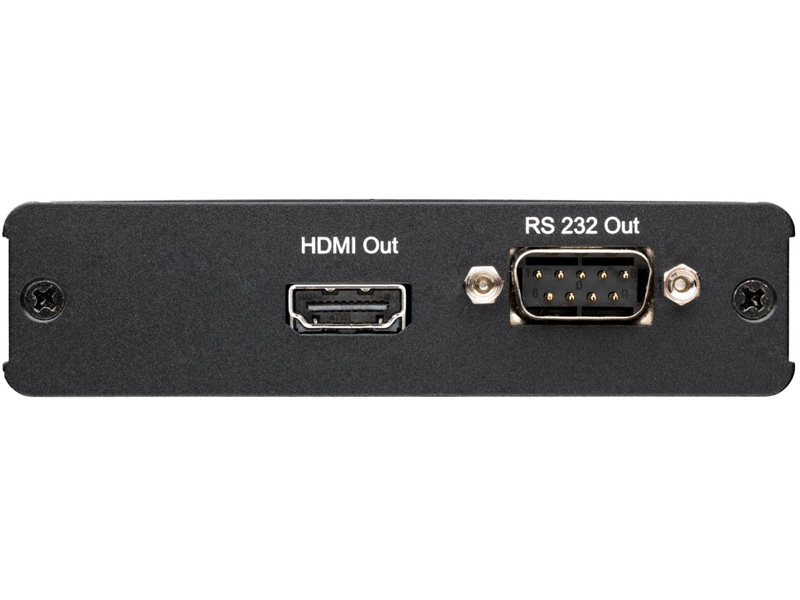

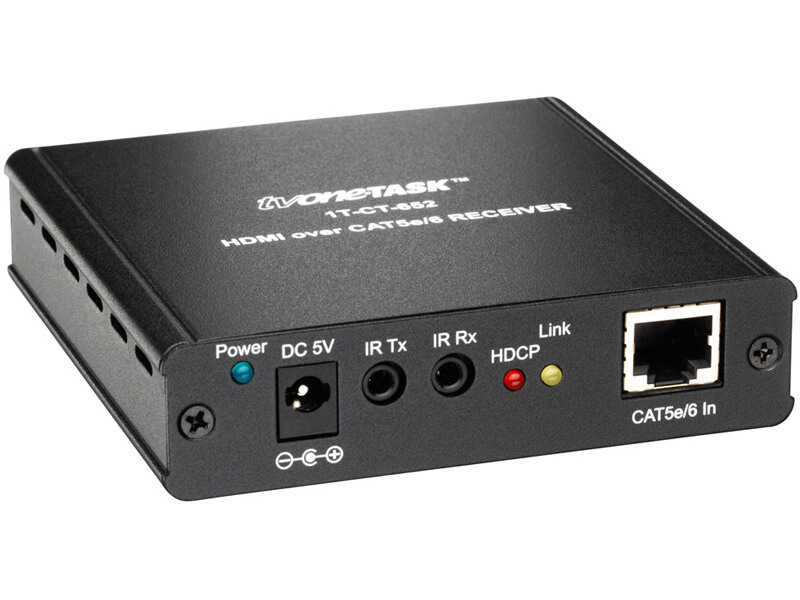

tvONE 1T-CT-652 | HDMI over Single Cat5e/Cat.6 Receiver with HDBaseT technology
Product Code:
Product Discontinued
1T-CT-651/1T-CT-652 HDMI over Single Cat.5e/Cat.6 form a product group which employs HDMI v1.4a capability and the HDBaseT 3Play™ technology to allow transmission of uncompressed, 1080p high definition television signals over a single Cat.5e or Cat.6 cable. (This is the type cable typically employed for Ethernet computer networks.) HDMI v1.4a signals - including 3D and 4K x 2K formats - are supported and the system will also allow DVI signal transmission with appropriate DVI to HDMI Cable adapters. In addition, computer resolutions to WUXGA are supported and embedded 7.1CH LPCM, Dolby TrueHD and DTS-HD Master Audio capability is standard. The 1T-CT-651/1T-CT-652 system can achieve signal distribution distances of up to 100 meters (325 feet) for uncompressed 1080p signals without signal degradation.
Bi-Directional Infrared control is provided via sensors that can be remotely placed several feet from the units themselves. Bi-directional RS-232 signals are also supported. HDCP security is enabled at the version 1.1 level and both the Transmitter and Receiver units feature the unique TV One-task locking power connectors to enhance overall system mechanical security.
