Datavideo Solutions

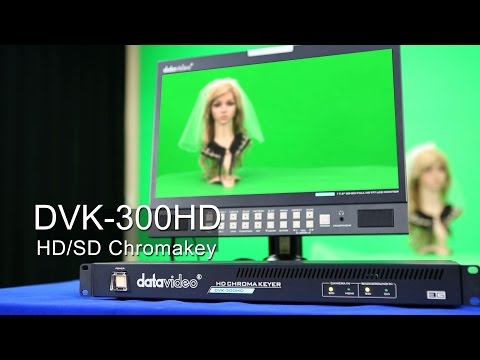

DVK-300HD

Live real-time HD chromakey and luma key solution

Product Code: DATA-DVK300HD

Suggested Retail Price £1,695+VAT

Where to buy Videos

Kit List

View your Kit List

High quality SD and HD chromakeying with any SDI or HDMI-based camera. Adjust all image parameters - background and foreground - to deliver a totally natural and clean final result.

The device offers a lot more image control than you find on a lot of low-cost vision mixers, essential in lots of green screen scenarios for fast and accurate keying.

  • Support 3G-SDI / 1080P
  • Easy operation and control via LAN connection to laptop
  • Key noise reduction
  • Colour spill processing
  • Edge control (brightness)
  • Post processing – correction of picture parameters (brightness, contrast, saturation) applied on foreground signal after keying processing
  • Foreground supports 3G-SDI, HD/SD SDI, HDMI (1.4)
  • Background supports 3G-SDI, HD/SD SDI, DVI-I
  • Main output can be 2 SDI output simultaneously and HDMI output
  • Matte control to adjust black and white level for a precise chroma key setting To delete the reflective color from foreground
  • 1U and 19" rack mount design

DVK-300HD is an advanced HD chromakey device which is easy to operate and delivers excellent results with minimal user input required.

The device can be controlled locally using a directly attached laptop or remotely over an IP network.

Most HD chroma key systems are either complex computer-based solutions or are embedded in sophisticated vision mixers. For users that simply need accurate and affordable live keying in a portable device, the DVK-300HD is a great new option.

Fitting into HDMI and SDI-based live environments, the keyer supports SD and HD resolutions up-to 1080P. High resolution backgrounds are ingested via SDI, HDMI or DVI with the resulting keyed composite picture displayed via HDMI.

Getting Chromakey Wrong - Nigel's Blog

We were really amazed when we did our first DVK-300HD demo...

The PPU in Demand, on Demand

Datavideo UK is launching a new service to deliver bespoke, fully configured portable production units (PPU). A new web app will allow customers to specify the style of case, to select each module and design the layout of their PPU which can then be assembled and delivered in a matter of days, ready to go live.

Datavideo goes green in HD

Datavideo announces a live, real-time HD chroma key and luma key solution. Shipping this Autumn, DVK-300HD is an advanced, standalone HD chroma key device. It is designed to be easy to operate, and delivers excellent results with minimal user input required. The device can be controlled locally using a directly attached laptop or remotely over an IP network.

  • 1x DVK-300HD
  • 1x PWR adaptor DC12V
  • 1x DVK-300HD CD For Chroma Key Utility
