Sonnet Echo Dual NVMe Thunderbolt Dock | 8-Port Thunderbolt Docking Station With Two Internal M.2 SSD Slots

Sonnet

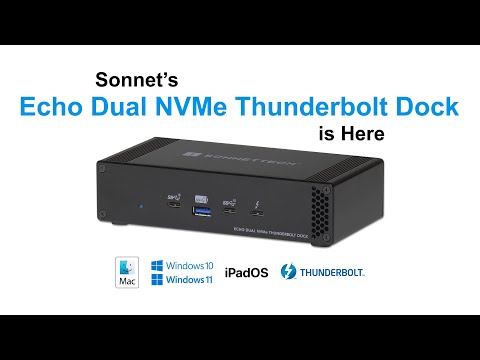

Echo Dual NVMe Thunderbolt Dock

8-Port Thunderbolt Docking Station With Two Internal M.2 SSD Slots

Product Code: SONECHODK2M2TB

Suggested Retail Price £275+VAT

Where to buy Videos

Have a question about this product or want to request a demo?

Contact Our Technical Team

Kit List

View your Kit List

Warranty

All new Sonnet products purchased on or after January 1, 2019, have a two-year limited warranty, except as listed here. All new Sonnet products purchased on or before December 31, 2018, have a one-year limited warranty, except as listed here.

  • 8-Port Thunderbolt Docking Station With Two Internal M.2 SSD Slots
  • Two M.2 NVMe SSD Sockets
    Add up to 16TB of storage inside (SSDs sold separately); achieve data transfer speeds up to 3000 MB/s (SSDs configured as RAID 0 set)
  • Connects to Your Peripherals with One Cable
    Plug in peripherals to the dock with their cables, and then connect your computer to the dock with the included Thunderbolt cable for instant access
  • Front Panel Thunderbolt Port for Peripherals
    Connects one Thunderbolt peripheral directly and supports daisy-chaining of up to five Thunderbolt devices. Also supports USB 4 and USB 3 peripherals
  • Powerful 10Gbps USB Ports
    Four USB 3.2 Gen 2 ports provide up to 7.5W of power each for bus-powered peripherals, and for charging of devices
  • Quiet, Effective Cooling
    Temperature-controlled, variable-speed fan automatically and quietly cools the dock and any installed SSDs
  • macOS Boot Support
    Supports booting from a single (non-RAIDed) SSD
  • Apple Pro Display XDR Supported
    Connect a Pro Display XDR, or a 5K or lower resolution display directly to the Thunderbolt peripheral port or at the end of the Thunderbolt device chain
  • Several Display Types Supported
    Connect a Thunderbolt or USB-C display directly. Supports an HDMI or DisplayPort display with a Thunderbolt-compatible adapter (sold separately)
  • Apple M1 Series Compatible
    Supports all Apple® M1, M1 Pro, and M1 Max Mac computers
  • Intel Mac Compatible
    Supports all Thunderbolt 3 Mac computers running macOS® 10.12.6+
  • Intel Windows Compatible
    Supports all Thunderbolt 4 and Thunderbolt 3 Windows computers
  • Apple M1 iPad Pro Compatible
    Supports all iPad Pro tablets with a Thunderbolt port

Add Up to 16TB of SSD Storage

Mass SSD storage meets desktop dock convenience. Dual NVMe slots support internal high performance storage expansion*. Transfer and access data in seconds, and effortlessly store large files and media libraries. Convenient, fast peripheral ports provide connectivity and charging for your Thunderbolt and USB devices.

  • Internal SSD Expansion
    Add your own high performance M.2 NVMe SSDs
  • Four 10Gbps USB Charging Ports
    USB Type-C and Type A ports power and charge your devices
  • Thunderbolt Daisy-chaining
    Attach up to five daisy-chained Thunderbolt devices
  • Supports Up to a 5K Display
    Maximize the utilization of one computer Thunderbolt port

Mac® | Windows® | iPad Pro®

Compatible with all Thunderbolt™ 4 computers, all M1, M1 Pro, M1 Max Macs, all Thunderbolt 3 Mac and Windows computers, and iPad Pro tablets with a Thunderbolt port.

Peripherals to Your Computer with One Cable

Plug in your USB peripherals, Thunderbolt™ devices, and a monitor, and then connect them all with a single Thunderbolt cable from the Echo™ Dual NVMe Thunderbolt Dock to your computer. When it is time to leave, just unplug the Thunderbolt cable, grab your laptop, and go.

Add up to 16TB of SSD Storage Inside!

The Echo Dual NVMe Thunderbolt Dock features two M.2 NVMe PCIe SSD slots, enabling you to easily install high performance M.2 NVMe SSDs (sold separately) inside. Because installed SSDs interface with the dock’s Thunderbolt controller, they utilize its bandwidth to deliver the performance of a portable Thunderbolt SSD, but are tucked away neatly within the dock.

Fast Single SSD Data Transfers. Great RAID 0 Performance

Single SSDs installed in the Echo Dual NVMe Thunderbolt Dock can each achieve sustained data transfers of up to 1500 MB/s. Configured as a RAID 0 set for even greater performance, data transfers up to 3000 MB/s are possible. Start with one SSD, and add any size SSD later without needing to format the first one.

Convenient Front Panel Thunderbolt Peripheral Port

The Echo Dual NVMe Thunderbolt Dock includes two 40Gbps Thunderbolt ports; one for connection to your computer, the other to daisy chain up to five additional Thunderbolt peripheral devices plus a display. The Thunderbolt peripheral port also offers 10Gbps USB 3.2 Gen 2 support, meaning you can connect another USB device using the proper cable or adapter. The dock’s Thunderbolt peripheral port provides up to 15W, supporting even the most demanding bus-powered Thunderbolt devices.

Powerful 10Gbps USB Ports

The Echo Dual NVMe Thunderbolt Dock features four versatile USB 3.2 Gen 2 (10Gbps) ports (two Type-C plus two Type A) that support super-fast USB NVMe SSDs at full speed. Each port delivers up to 7.5W to ensure connected bus-powered devices operate without fail, and may be used to charge your iPhone®, iPad®, or other device that charges via USB.

Fan Keeps Everything Cool

The Echo Dual NVMe Thunderbolt Dock’s temperature-controlled, variable-speed fan with whisper-quiet operation keeps SSDs cool even during peak performance.

macOS Boot Supporter. Scratch Disk. Time Machine Backup.

Mac users can install macOS on one SSD to create a fast boot volume, and use the other installed SSD for file storage; as a super-fast plug-in, media storage, or scratch disk; or even for use as a Time Machine® backup volume.

Connect an Apple Pro Display XDR

Through its Thunderbolt peripheral port, the Echo Dual NVMe Thunderbolt Dock supports an Apple Pro Display XDR®, 5K @ 60Hz, 4K @ 75Hz, 1440p @ 165Hz, or 1080p @ 240Hz display, as supported by your computer. You can connect a Thunderbolt or USB-C display directly or at the end of a Thunderbolt device daisy chain. To use an HDMI or DisplayPort display, connect with an active adapter (sold separately).

Kensington Lock Ready

WIth up to 16TB of valuable data inside, you may want to secure the Echo dock with a Kensington® Lock (sold separately).

Thunderbolt Certified for Mac and Windows

The Echo Dual NVMe Thunderbolt Dock is certified for use with M1, M1 Pro, M1 Max Macs, Thunderbolt 3 Intel Macs with macOS 10.12.6 and later, and Thunderbolt 3 and Thunderbolt 4 computers running Windows 11 or 10.

40Gbps Thunderbolt Cable and ThunderLok 3 Included

Sonnet includes a Thunderbolt cable that supports Thunderbolt’s full 40Gbps bandwidth, and is fully compatible with Thunderbolt 4 and Thunderbolt 3 computers. Sonnet also provides a ThunderLok™ 3 Thunderbolt connector retainer clip that prevents accidental cable disconnections—just slide it over one end of the cable, and then plug in the connector and secure it to the dock by turning a thumbscrew. Because of its unique design, ThunderLok remains on the cable so it won’t get lost when not in use.

Sonnet Docks – For all your connectivity needs!

In today's fast-paced world, efficiency and productivity are paramount, especially in the realm of technology. Whether you're a creative professional, a remote worker, or a multitasking enthusiast, having a clutter-free and organised workspace can significantly enhance your workflow. That's where Sonnet Technology's Echo Dock Range comes to the rescue. Combining functionality, versatility, and style, these innovative docking stations offer a seamless solution to optimise your desktop space and supercharge your productivity. Join us as we delve into the world of Echo Docks and explore the unique features that make them a must-have accessory for any workspace.

  • Echo Dual NVMe Thunderbolt Dock
  • Power adapter
  • Power cord
  • 0.5-meter Thunderbolt 3 (40Gbps) cable
  • ThunderLok 3 Thunderbolt connector retainer clip(5)
  • Documentation
