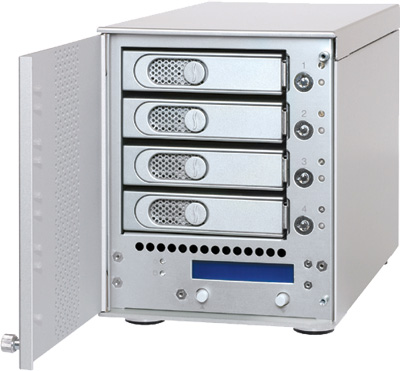

Sonnet Fusion D400QR5 | Desktop 4-Drive Hardware RAID 5 SATA Storage Systems with Quad Interface

Sonnet

Fusion D400QR5

Desktop 4-Drive Hardware RAID 5 SATA Storage Systems with Quad Interface

Product Code:

Product Discontinued

  • High Performance - When connected via eSATA and with four 1TB drives configured as RAID 5 set, delivers data transfers up to 224 MB/sec read, 177 MB/sec write
  • RAID 5 Onboard - Integrated hardware RAID controller supports RAID 5 internally; no need for a specialized RAID controller card
  • Informative Display - Provides operating status at a glance
  • Simple Setup - Integrated controls enable you to select from multiple RAID modes and configure the drives to meet your performance and data security needs, no matter which interface you choose
  • Choice of Interface - eSATA, FireWire 800, FireWire 400, and USB connections provide maximum setup convenience and flexibility
  • Quiet Operation - High performance, low noise fans
  • Platform independent - Mac, Windows and Linux
Performance and Data Security
Considering a multi-drive storage system? If so, you already know about the benefits of striping data across multiple drives - you'll gain the faster performance necessary for working with HD video formats when you connect the system to an eSATA host controller. Sonnet's Fusion D400QR5 desktop and Fusion R400QR5 rackmount SATA storage systems deliver speed, reliability, and versatility in easy to deploy packages. Fusion D400QR5 and R400QR5 systems offer security, too - each one features a high performance internal RAID controller that manages the enclosed drives and supports RAID 5 drive formatting, which provides data protection in case one of the drives fails. Available in configurations from 2 to 8TB, these Sonnet storage systems incorporate an informative display and status LEDs, and simple to use controls that enable you to easily configure the drives or select information to be displayed.

RAID 5 Benefits
RAID 5 drive set configuration offers critical security that RAID 0 lacks. A RAID 0 configuration (data striped across all the drives with no redundancy) delivers the best data transfer speeds, but the tradeoff BASIC RAID 5 STORAGE SYSTEMS is that if a drive fails, all the data on the volume may be lost. A RAID 5 configuration (data striped across all the drives with parity across all members) still delivers great performance, but should a single drive fail, the data on the volume is retained. Replacing the failed drive will restore the volume back to normal. RAID 5 support in Fusion D400QR5 and R400QR5 is provided by the integrated RAID controller, so a specialized controller card is not required.

One Cable, All the Data
Fusion D400QR5 and R400QR5 enclosures require just a single locking data cable to connect to a SATA host controller card, such as Sonnet's Tempo SATA E4P, Tempo SATA X4P, or Tempo SATA Pro ExpressCard/34. This efficient interface simplifies setup and cuts cable clutter without compromising performance.

No SATA?
No problem-connected via a single FireWire 800, FireWire 400, or USB cable, all four drives can be accessed at the full speed of the respective interface. To keep things simple, Sonnet includes all four interface cables in the package.
