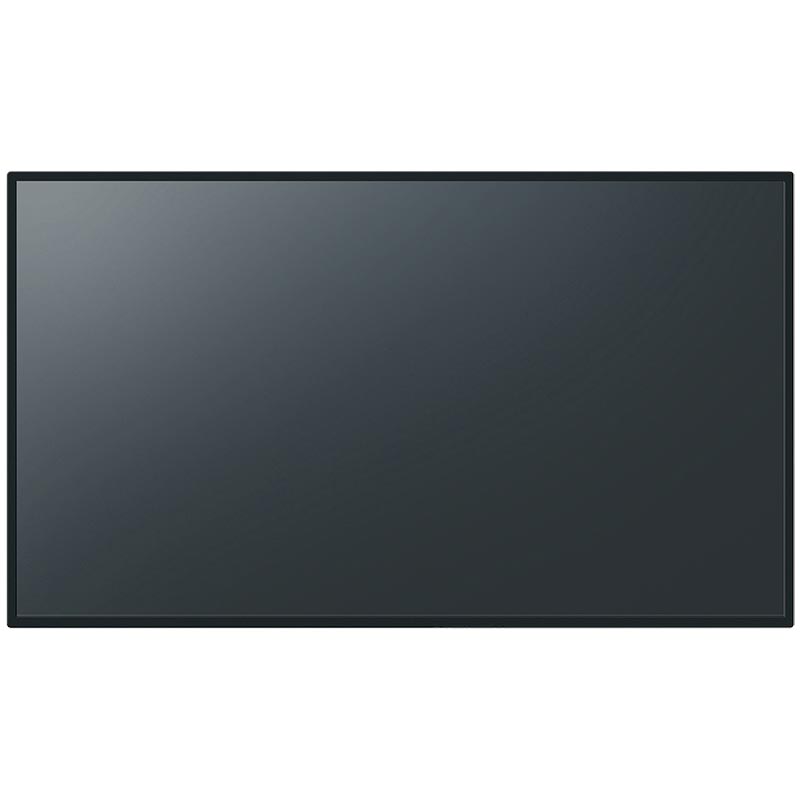

Panasonic TH-43LFE8E | 43-inch Professional LED for signage, conference rooms and multi-displays
Product Code:
Product Discontinued
| TH-65LFE8 | TH-55LFE8 | TH-48LFE8 | TH-43LFE8 | ||
Display |
|||||
|---|---|---|---|---|---|
| Screen Size | 65-inch (1638 mm) | 55-inch (1387 mm) | 48-inch (1209 mm) | 43-inch (1079 mm) | |
| Panel Type | VA Panel/E-LED | IPS Panel/D-LED | VA Panel/D-LED | VA Panel/D-LED | |
| Aspect Ratio | 16:9 | 16:9 | 16:9 | 16:9 | |
| Effective Display Area (W x H) |
1428 x 803 mm (56.2″ x 31.6″) |
1209 x 680 mm (47.6″ x 26.7″) |
1054 x 592 mm (41.4″ x 23,3″) |
940 x 529 mm (37.0″ x 20.8″) |
|
| Number of Pixels (H x V) | 1920 x 1080 pixels | 1920 x 1080 pixels | 1920 x 1080 pixels | 1920 x 1080 pixels | |
| Brightness (Typ) | 350 cd/m2 | 350 cd/m2 | 350 cd/m2 | 350 cd/m2 | |
| Contrast Ratio | 5000:1 | 1200:1 | 4000:1 | 3000:1 | |
| Response Time | 6.5 ms (G to G) | 9.0 ms (G to G) | 8.0 ms (G to G) | 6.5 ms (G to G) | |
| Viewing Angle (Horizontal/Vertical) | 176°/176° (CR≥20) |
178°/178° (CR≥20) |
178°/178° (CR≥20) |
178°/178° (CR≥10) |
|
Connection Terminal*1 |
|||||
| VIDEO IN | 4-pole mini jack (M3) x 1 | ||||
| HDMI In | HDMI TYPE-A connector x 2 * VIERA LINK is not supported. | ||||
| DVI-D In/Audio In (L/R) | DVI-D 24-pin x 1/Stereo Mini Jack (M3) x 1 (Shared with PC In) | ||||
| PC In/Audio In (L/R) | Mini D-sub 15-pin x 1/Stereo Mini Jack (M3) x 1 (Shared with DVI-D In) | ||||
| USB | USB connector (TYPE A) x 1, DC 5V/1A * USB 3.0 is not supported. | ||||
Control |
|||||
| Serial | D-sub 9-pin x 1, RS-232C Compatible | ||||
| LAN | RJ45 x 1 10 BASE-T/100BASE-TX, Compatible with PJLink™ | ||||
| IR In/Out | Mini Jack (M3) x 1/ x 1 | ||||
| Audio | Audio Out | Stereo Mini Jack (M3) x 1 | |||
| Built-in Speaker | 20 W [10 W + 10 W] (10% THD) | ||||
| Electrical | |||||
| Power Requirements | 110-127/220-240 V AC, 50/60 Hz | ||||
| Power Consumption | 160 W | 170 W | 150 W | 135 W | |
| On Mode Average Power Consumption*2 | 115 W | 130 W | 105 W | 95 W | |
| Power off Condition | Approx. 0.3 W | Approx. 0.3 W | Approx. 0.3 W | Approx. 0.3 W | |
| Stand-by Condition | Approx. 0.5 W | Approx. 0.5 W | Approx. 0.5 W | Approx. 0.5 W | |
Mechanical |
|||||
| Dimensions (W x H x D) | 1451 x 829 x 62 mm (57.2″ x 32.7″ x 2.5″) | 1239 x 712 x 62 mm (48.8″ x 28.0″ x 2.5″) | 1082 x 624 x 62 mm (42.6″ x 24.6″ x 2.5″) | 969 x 560 x 61 mm (38.2″ x 22.1″ x 2.4″) | |
| Bezel Width | 7.5 mm (0.3″) (L/R/T), 10.5 mm (0.42″) (B) | 12.6 mm (0.5″) (L/R/T), 14.5 mm (0.57″) (B) | 11.9 mm (0.47″ ) (L/R/T), 14.7 mm (0.58″) (B) | 11.9 mm (0.47″ ) (L/R/T), 14.9 mm (0.59″) (B) | |
| Weight | Approx. 36.2 kg (79.9 lbs.) |
Approx. 16.0 kg (35.3 lbs.) |
Approx. 11.5 kg (25.4 lbs.) |
Approx. 8.7 kg (19.2 lbs.) |
|
| Pitch of Wall-hanging | VESA Compliant 400 x 400 mm (15.8″ x 15.8″) |
VESA Compliant 200 x 200 mm (7.9″ x 7.9″) |
|||
Installation Requirement |
|||||
| Orientation | Landscape / Portrait | ||||
| Tilting Angle | 0-20 degrees forward with landscape setting*3 | ||||
Operating Environment |
|||||
Temperature: 0°C to 40 °C (32 °F to 104 °F)*4 / Humidity: 20 % to 80 % (Non Condensation)*5 |
|||||
Operating Time*6 |
|||||
| 16 h/day | |||||
*1: Due to the terminal block construction, some connection cables and USB memory devices cannot be used. Be sure to check the "CONNECTION TERMINAL" information in the product specification sheet.
*2: Based on IEC 62087 Ed.2 measurement method.
*3: Please contact your sales representative with regard to the tilt angle before installation.
*4: Environmental temperature to use this unit at high altitudes (1400 m (4593 ft) and higher and below 2800 m (9186 ft) above sea level): 0 °C to 35 °C (32 °F to 95 °F)
*5: Depending on the temperature or humidity conditions, uneven brightness may be observed. This is not a malfunction. • This unevenness will disappear while applying current continuously. If not, consult the distributor
*6: In case of long time, the moving image is recommended to be displayed. If you display a still picture for an extended period, the image retention might remain on the screen. However, image retention can gradually disappear by displaying a moving images.
This slim design allows effective space utilization in stores, showrooms and conference rooms. With a depth of less than 62 mm, it is also not oppressive when mounted on a wall. Available in four sizes: 65, 55, 48, and 43 inches.
The bezel is about the same width all around the perimeter. On the 65-inch model, the bezel is only 7.5 mm (0.3″) wide on the top and both sides, and 10.5 mm (0.41″) on the bottom. This slim bezel design helps viewers concentrate on the screen image. In addition, when replacing, for example, a 60-inch PDP TV, a larger, 65-inch model can fit into almost the same space.
The LFE8 Series features a USB media player. Signage operation is possible by simply inputting the desired content via USB, eliminating the need for a set-top box. Both videos and still images can be displayed, so a wide variety of original signage content can be used.
Depending on the type of a USB memory device, it may come in contact with the periphery such as a back cover, and cannot be attached. Use a commercially sold extension cable, or use a small type of a USB memory device connectable to this unit
The LFE8 Series is often used vertically for menu boards and town guide displays, and can be mounted in landscape, portrait, or multi-screen configuration. This provides information that is easy to see even in relatively high places inside the store, and increases mounting possibilities.
The LFE8 Series features 10 W + 10 W built-in speakers. This eliminates the need for external speakers when displaying content with a sound track or when holding videoconferences. There is also no need to consider the space for the speakers when setting up the display.
Compared to the LFE7 Series, the number of signals supported by the LFE8 Series has been increased by 25 to provide a total of 59. This lets you display the content of various formats. It also saves labor, not only for signage use, but also for reproducing materials in meeting rooms by eliminating the need to convert materials in advance.
