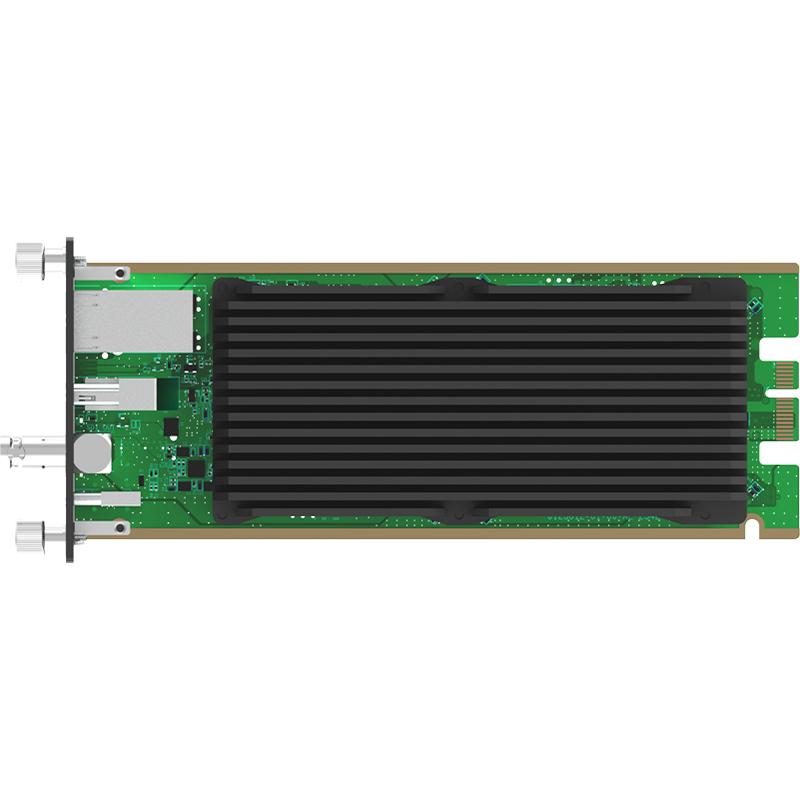

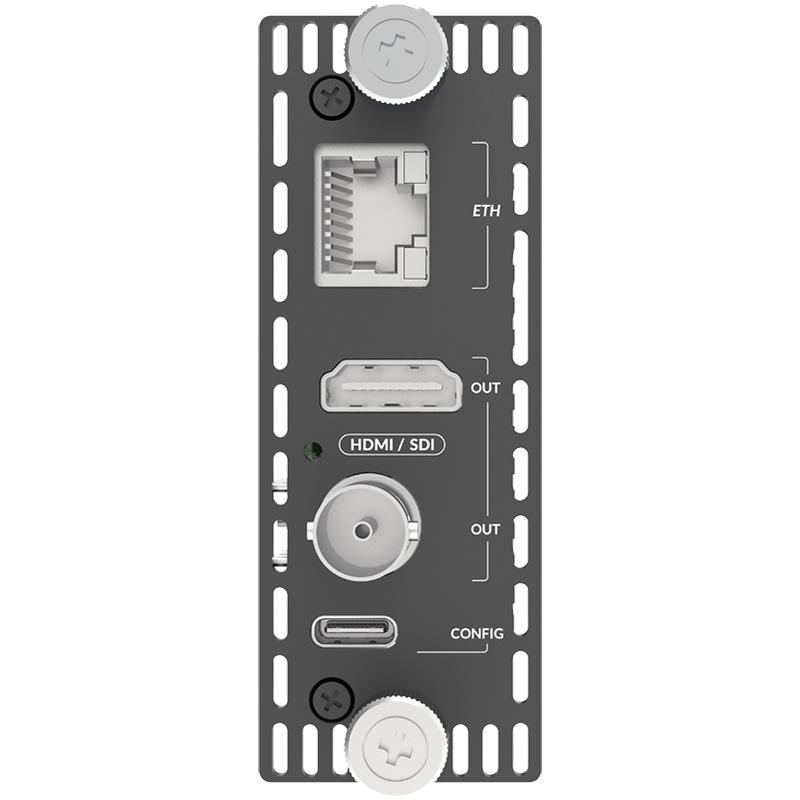

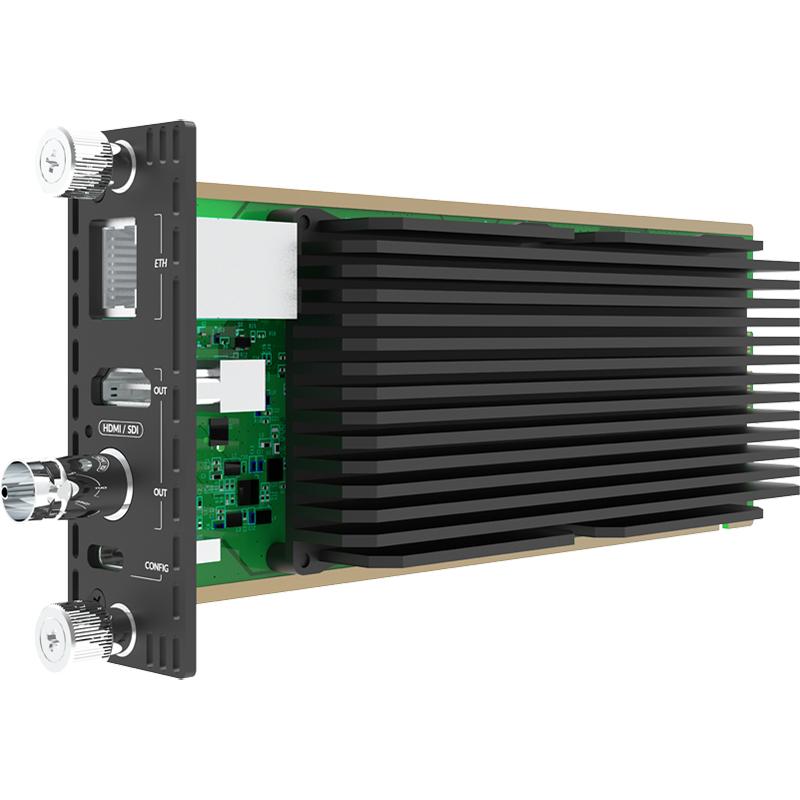

Magewell Pro Convert for NDI® to AIO Module | Converts a live NDI® stream into HDMI and SDI

• Converts a live NDI® stream into HDMI and SDI
• A hot-swappable module to be installed in Magewell Modator chassis
• Decodes high-bandwidth NDI and NDI HX including earlier variants into HDMI and SDI
• Centrally manageable via the Modator chassis and Magewell Control Hub

Output Features

• Support for up to 1920x1080 60fps HDMI and SDI output
• Supports 48KHz 8-channel audio output

Decoding Features

• Support for decoding up to 2Kp60 NDI streams
• Support for decoding high-bandwidth NDI and NDI HX
• Discover NDI devices across network segments
• Compatible with H.264/H.265 streams in additional protocols including RTSP, HTTP, HLS, RTMP Pull/Push, MPEG-TS over UDP/SRT/RTP and TVU
• Supports NDI 5.x

Others

• Very low latency
• Configure through the touch screen of Magewell Modator chassis, Web GUI or Control Hub
• HTTP-based APIs for custom integration
• Image flip for inverted projector installations and safe area controls
• 2-year warranty
