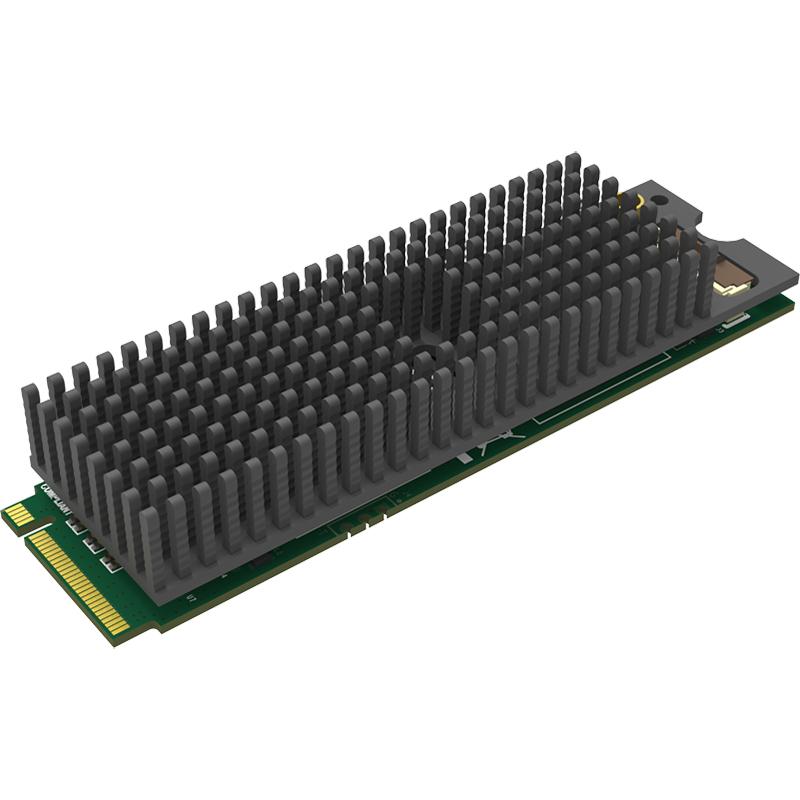

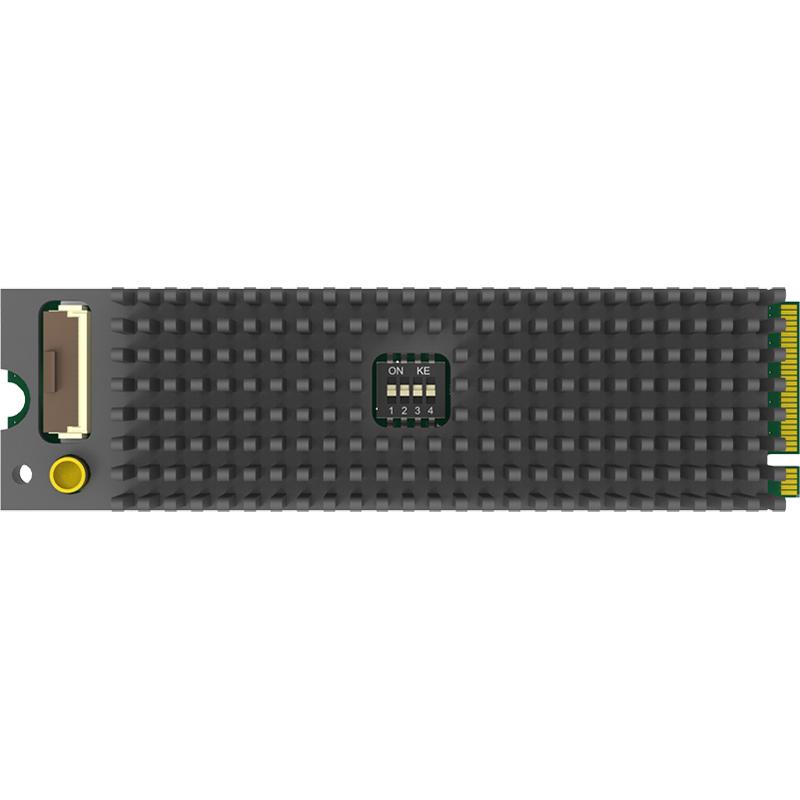

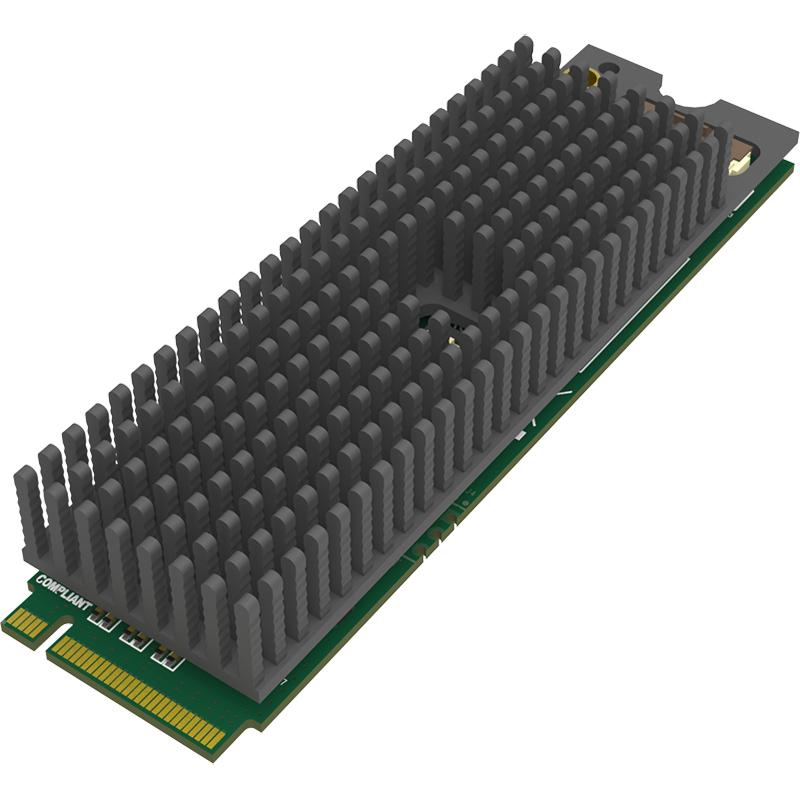

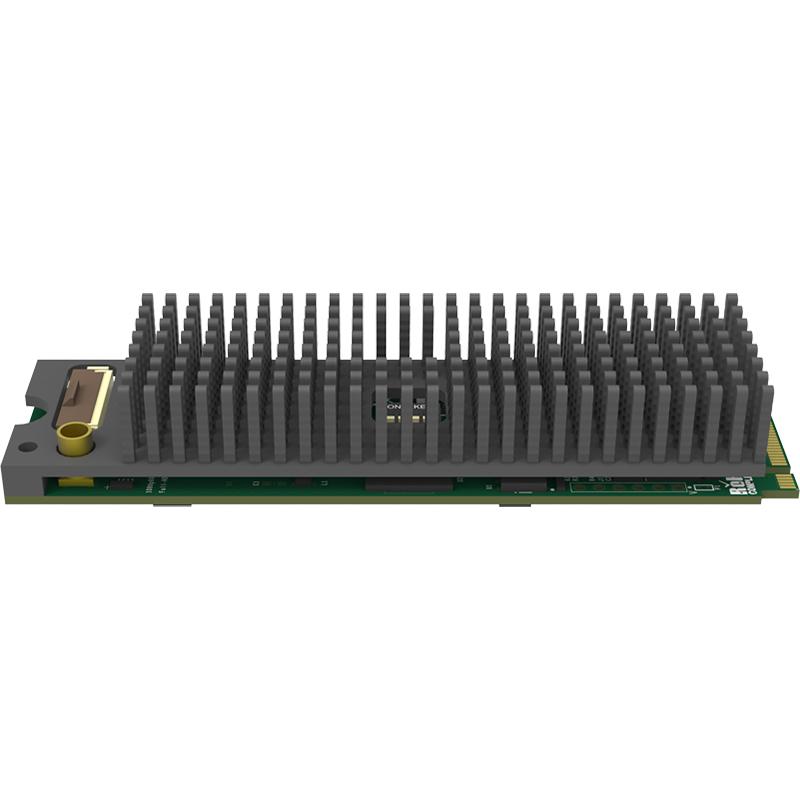

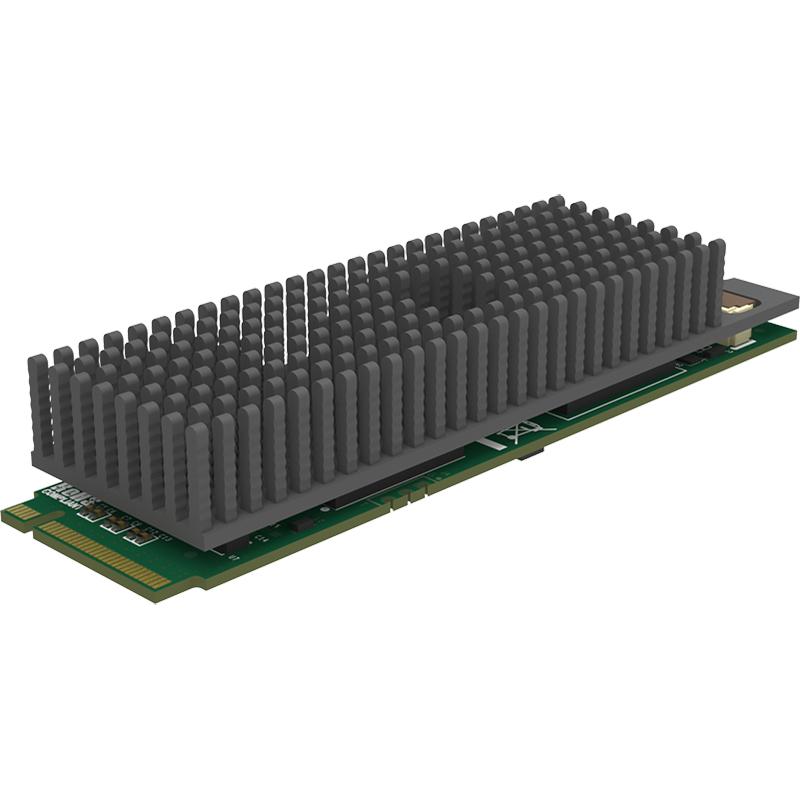

Magewell Eco Capture AIO M.2 | One-channel 2K capture card for all-in-one interfaces

• One-channel 2K capture card for all-in-one interfaces
• Support one-channel 2K HDMI/SDI input with embedded audio
• M.2 2280 standard size for small or portable chassises
• Input Interface: HDMI x1, with input resolution up to 2048 x 1080 pixels | SD/HD/3G/2K SDI x1, with input resolution up to 2048 x 1080 pixels
• Host Interface: M.2 2280 Type M (PCIe Gen2 x2)

Video Engine

• Auto detection of input signal format
• Colour formats conversion
• Low latency mode
• SG-DMA transmission mode
• Multiple replicated capture streams
• Closed caption (SDK required)

Software

• Window & Linux driver and SDK
• Upgradable firmware
• Compatible with Capture Express, Magewell Bridge for NDI®, Plugin for Premiere®

Other Features

• Continuously work for 24hx7
• LED status indicator
• Multiple devices on one host
• On-board dip switch to set card number
• 2-year Warranty
