Converters and Scalers

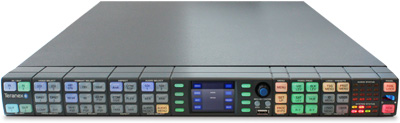

Blackmagic Design VC100 (Teranex) | Universal Format Converter & Frame Synchronizer with Standards Conversion

Blackmagic Design

VC100 (Teranex)

Universal Format Converter & Frame Synchronizer with Standards Conversion

Product Code:

Product Discontinued

  • Software Field Updatability and Upgradability

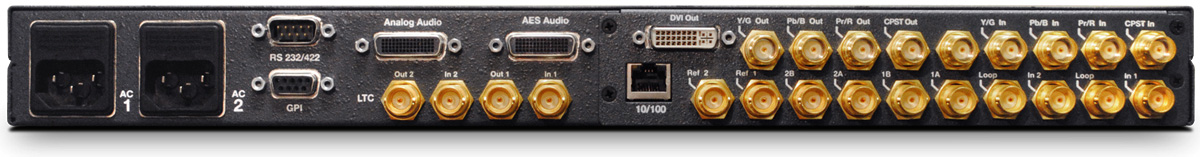

  • Flexible Video and Audio I/O with Available Analogue I/O
  • Supports AFD, WSS & RP186
  • Reaction and Insertion for Active Format Description (AFD)
  • Full SD 608 and HD 708 Closed Captioning Capability
  • Easy Setup with Intuitive User Interface

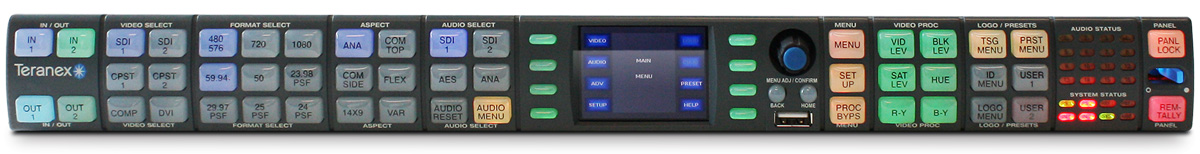

  • Detachable and Remotable Front Panel
  • Front Panel LCD Serves as Video I/O Monitor & Menu Display
  • Integrated Video & Tone Test Signal Generator
  • Available With Up To 16 Tracks of Audio per Video Processing Channel
  • Full Audio Shuffling of all 16 Channels
  • Audio Gain, delay & Phase Control of all 16 Channels
  • SD/HD Linear Frame-rate Conversion
  • SD/HD Temporal Recursive Noise Reduction
  • Redundant Power Supplies
  • Colour Correction

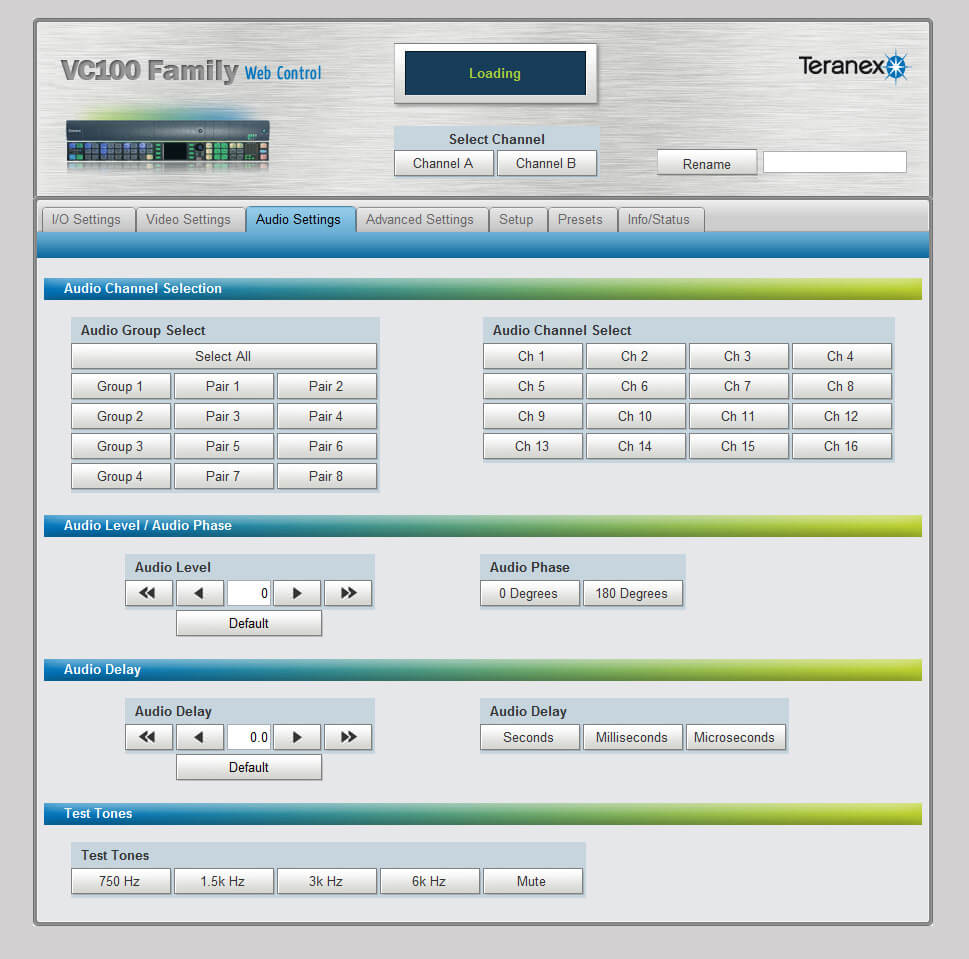

  • Web Server Control
  • Logo Insertion
  • HD Active Fill
  • 3:2 Removal
  • Scene Cut Detection
  • Slow PAL
  • 3D Processing and 2D-to-3D Applications
  • Now With Over 250 Format Conversions
Teranex's VC100 Universal frame synchronizer and format converter is packed with Teranex's proprietary and patented technology yielding unsurpassed flexibility and image processing quality. When first introduced, the VC100 set a new standard for performance and integration in frame synchronizers and was the culmination of many years of development and image processing know-how gained at Teranex. Continuous product development has added support for over 250 format and frame-rate conversions and 3D stereoscopic processing applications.

The Teranex VC100 universal frame synchronizer and format converter includes, as standard features, extremely high quality de-interlacing, up conversion, down conversion, SD and HD cross conversion, SD and HD standards conversion, automatic cadence detection and removal even with edited content, noise reduction, adjustable scaling, aspect ratio conversion and smart aspect ratio 4:3 to 16:9 conversion, all with full timecode and multi-channel audio conversion. Also included are 3D dual channel conversions, new patent pending 3D simulation and the forthcoming 3D toolkit for matching cameras in 3D rigs for perfect alignment. The VC100 is at home in both post production and broadcast facilities and is an essential addition to any facility desiring the highest quality format conversions.

Typical Applications:
  • SD & HD Frame Synchronizing
  • Frame Synchronizing and Conversions with AES audio embedding
  • Frame Synchronizing and Conversions with Embedded Audio Channel mapping
  • Up Conversion with AFD flags switching aspect ratios between program and commercials
  • SD & HD Standards Conversion
  • 2D-to-3D Conversion, 3D Encoding and 3D Decoding

VC100 Optional Features:
  • Remote Control Panel
  • AES and Analogue Audio I/O Module
  • Analogue Composite & Component Video I/O Module
  • 3G-SDI I/O Module
  • Dolby-E Decoding Module
  • Audio Expansion Module
