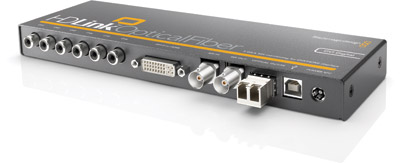

Blackmagic Design HDLink Optical Fiber | Incredible HD and native 2K film monitoring on DVI or HDMI displays!

Eliminate the high cost of HDTV monitoring with HDLink - the world's most advanced full HDTV resolution monitoring converter for DVI and HDMI monitors. Includes the quality of 4:4:4 SDI video, lookup tables via USB and analogue audio outputs.

HDLink Optical Fiber includes amazing quality DVI and HDMI monitoring with 6 channels of RCA analogue audio out, 3D lookup tables, single link 3 Gb/s SDI input, single link 3 Gb/s SDI loop thru output, optical fiber SDI input, optical fiber SDI loop-thru output and support for 24 inch displays for HD monitoring and 30 inch displays for real time 2K monitoring.

Built in Optical Fiber
The HDLink Optical Fiber model is the worlds first broadcast monitoring solution with built in optical fiber SDI connections. Optical fiber easily handles long distances, is low cost, and optical fiber cables last virtually forever because you can keep plugging them into faster equipment in the future, and the same cables will go much faster. Optical fiber cables can be installed by your local electrician, and the cables can be purchased from your local electrical wholesaler. That's because optical fiber is used all the time in computer networking, so it's low cost and commonly available! Now you can build a native optical fiber facility!

Colour Management via 3D Lookup Tables
For matching LCD display colourimetry and simulating various types of film stocks, HDLinkl features more advanced 3D lookup tables. Advanced 3D lookup tables increase colour control because a blend of red, green and blue video can be output to each primary colour on the connected display. Only advanced 3D lookup tables can give full colour control for accurate simulation of almost any feature film stock. Lookup tables are fully adjustable via a high speed USB 2.0 host computer connection using the included HDLink Utility software for Windows and Mac OS X. Custom lookup tables also allow film industry log video to be converted to linear for monitoring when used for feature film work. Preset gamma tables for Panasonic and Grass Valley Thomson Viper cine-gamma are included.

Full Resolution HD Monitoring
HDLink connects SDI video directly to any supported DVI-D based LCD computer monitor for incredible true HDTV resolution video monitoring. HDLink includes 3 Gb/s SDI for high resolution 2K film monitoring when connected to a large 30 inch DVI display. With every individual pixel in the HD or 2K SDI connection digitally mapped directly to the pixels of the LCD display, you get a perfect digital-to-screen pixel for pixel HDTV or 2K display. Connect any HDMI television or video projector to HDLink for cinema style monitoring! Even large 23 inch CRT based monitors can display the full resolution of the HD-SDI signal, but with HDLink you see every pixel in the HD signal, so you'll always see a perfect image. You'll be amazed at the quality of High Definition or 2K video when you monitor via HDLink for the first time. There's simply no higher resolution HDTV monitoring possible!

Supports both DVI and HDMI
HDLink supports all DVI-D and DisplayPort based digital computer displays and also includes HDMI video support. HDMI supports video at 1080i/50, 1080i/59.94 and 720p/59.94 on any HDMI device. DVI-D and DisplayPort supports displays at 1920 x 1200 (16:10) resolution for all 1080 HDTV formats. When working in 720 HDTV formats you can even use lower cost 1280 x 800 resolution display for pixel for pixel 720p viewing. When working in NTSC or PAL, HDLink can scale to fill the screen making viewing easier. Because most computer displays are limited to approximately a 60 Hz refresh rate, HDLink will automatically apply pull-down to allow video frame rates to be displayed. HDLink includes a built-in Power PC processor allowing automatic adjustment of native display resolutions using VESA E-EDID1.3.
