Routing Switchers

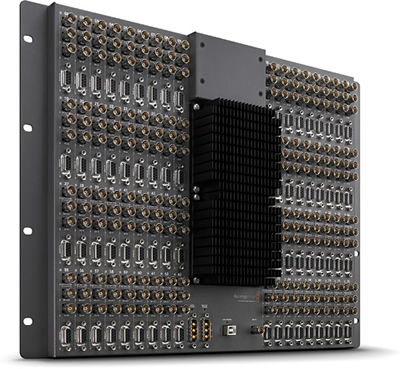

Blackmagic Design Broadcast Videohub | 3G-SDI Routing Matrix with 72 in, 144 out and 72 deck control ports
Product Code:
Product Discontinued
Broadcast Videohub lets you connect all the equipment in your facility and easily change connections from your computer's desktop. Broadcast Videohub is a powerful broadcast grade routing switcher that features a massive 72 inputs, 144 outputs, 72 deck control ports, and auto switching SD, HD, and 3 Gb/s SDI, all in a compact rack mount chassis only a few inches thick.
Industrial Strength Routing Switcher
With 72 inputs and 144 outputs, Broadcast Videohub is big enough to grow with your company. Broadcast Videohub has enough SDI connections for 72 edit systems or decks, and twice as many SDI outputs, so each user can have a completely independent SDI output for monitoring. 72 deck control ports are also included so you get a complete routing solution.
SDI Re-Clocking
Broadcast Videohub also includes built in SDI re-clockers on each SDI input which regenerate the SDI video signal. Every inch of video cable from your SDI video devices degrades the SDI signal. Expensive premium grade "digital" cables can help, however simply cannot eliminate this loss. With SDI re-clocking you can output regenerated and clean SDI signal out to all the SDI devices in your studio. That means longer cable lengths, and no glitches in your video.
Simultaneous SD, HD or 3 Gb/s Video
Broadcast Videohub makes it easy to run Standard Definition and High Definition equipment now and add 3 Gb/s SDI equipment in the future. That's because Broadcast Videohub handles mixed SD, HD and 3 Gb/s SDI connections all on the same router at the same time. Broadcast Videohub automatically detects when an SDI input changes, and instantly sets all SDI outputs connected to that input to match. SDI re-clocking and output SDI slew rates change automatically.
Independent Monitoring
Because most editors love monitoring direct from the router, Broadcast Videohub has 72 independent SDI outputs totally dedicated for monitoring. Independent monitoring outputs are great when you need to quickly look at decks and other editing systems in your facility. You can also use the extra outputs to connect consumer VHS and DVD recorders via external converters.
Deck Control Routing
With 72 independent Sonyââ€Ã…¾¢ compatible RS-422 serial control ports included, each editing system can control any deck in your facility. Each deck control connection is independently reversible via software control, so it's easy to connect edit stations or decks to any of the 72 deck control ports.
World's Highest Quality 3 Gb/s SDI
With the exciting new 3 Gb/s SDI connections built in, Broadcast Videohub allows twice the SDI data rate than normal HD-SDI. Use 3 Gb/s SDI for high resolution real time 2048 x 1556 feature film editing. 3 Gb/s SDI has full compatibility with SD, HD or 2K in 4:4:4 or 4:2:2 all with a single BNC cable. With 3 Gb/s SDI built in, you have full compatibility with all your current standard definition SDI and high definition SDI equpment, plus any new formats that come along in the future. With Broadcast Videohub, your studio is future proof.
Network Router Control
Videohub connects to any computer via USB and is then shared over your local network. Any computer can be the host by simply connecting to the router via the USB 2.0 connection, which activates that computer as the host and allows other computers on your network to connect. Router labels can be changed from any computer and are fully unicode compatible for foreign language support.
Connect to all Broadcast Decks
Broadcast Videohub works with all SDI broadcast video decks. Standard definition decks include Digital Betacamââ€Ã…¾¢, Panasonic HD D-5ââ€Ã…¾¢, and older decks such as Betacam SPââ€Ã…¾¢ using analog to SDI converters such as Multibridge. HD decks can also be connected such as HDCAM, DVCPRO HD, HD D-5 and Sony HDCAM SRââ€Ã…¾¢.
Flexible Distribution
Any input of Broadcast Videohub can be connected to any, and all video outputs. This is fantastic when multiple monitors and displays need to be sent the same video source, such as live events. Broadcast Videohub can send any video input to all 144 video outputs.
Power Fail Protection
For added reliability in critical environments, router connections are preserved in non volatile ram in case of power failure. When power is restored, all connections recover instantly even if the host computer is not connected.
Go the Distance
SDI video connects long distances up to 300 feet or 100 meters, so you can connect everyone together in your facility. Cables are simple BNC coax cables so you can easily make cables to the perfect length for your needs.
Industry Standard Format
Connect to any SDI deck for all industry tape formats, from DV, Digital Betacamââ€Ã…¾¢, D1, up to HDCAM SRââ€Ã…¾¢ and HD D-5. Using capture cards such as DeckLink you can capture to formats such as JPEG, DV to uncompressed 8 bit, 10 bit or RGB 10 bit.
High Reliability Power Supply
Broadcast Videohub includes 2 high reliability power supplies even though you only need one. The extra power supply is used as a backup and power changes over is instant in case of failure. You could also connect the second power supply to a different power circuit in your building or a UPS. For extra protection in case of a complete power failure, when the power comes back, all your connections are instantly restored.
