C2-7110 2-Channel 9-Input Video Processor provides two independent video processing and scaling engines and two video mixers for maximum flexibility in handling Composite, YC (S-Video), YUV Component, YPbPr HD Component, DVI, RGB and HD/SD-SDI. At home in both broadcast and display environments, it is multiple products in one.

Three operating modes simplify control:

Switcher Mode - Equally powerful Program and Preview channels allow any function (Next Image, PIP, Keying, Logo, etc.) to be set up and previewed, totally independent of the Program output. Transition from Preview to Program is by Cut, Dissolve or Special Effect.

Independent Mode - Provides all the power of two completely independent scalers in one box, each with a full range of features, including PIP, Keying, etc. Each output can deliver different formats and resolutions simultaneously. For example, a presentation being fed to a high resolution display on Output 1 via DVI can be fed to a VCR for recording on Output 2 via Composite Video.

Dual PIP Mode - Any video input can be squeezed and placed into either of two windows of any size and positioned anywhere on the screen, even overlapping, with user defined layer priority control. The windows can be placed over any other video input or a static image from memory as the background. The window's image can then be seamlessly switched, faded or zoomed. Keying can be independently applied to each window.

Powerful Features - 4:4:4 sampling provides full bandwidth colour which allows precise keying, including Transparent (Soft) Keys. The 11 video inputs can accommodate signals (either analogue or digital, video or computer) in a variety of formats and resolutions. It handles all known HDTV formats plus any analogue RGB resolution up to 2048x2048 - and new resolutions can be easily added. Each of the two independent outputs delivers a wide range of digital and analogue video signals.

In addition to SD and HD television formats, the C2-7200 output signal format flexibility assures that the Native Resolution of virtually any Digital Display can be matched. Using the software based resolution calculator, new or unusual resolutions can be instantly added to the menu. Signal parameter adjustments can be made for each video input and are stored in individual non-volatile memories. Integral Test Signals are user defined. A fast Logo memory is provided, so the unit can easily be used as a Logo Inserter. Advanced motion compensation (NTSC and PAL) is employed to smooth out fast moving images and its automatic 3:2 Pull-down detection efficiently de-interlaces video from 24 fps film (NTSC).

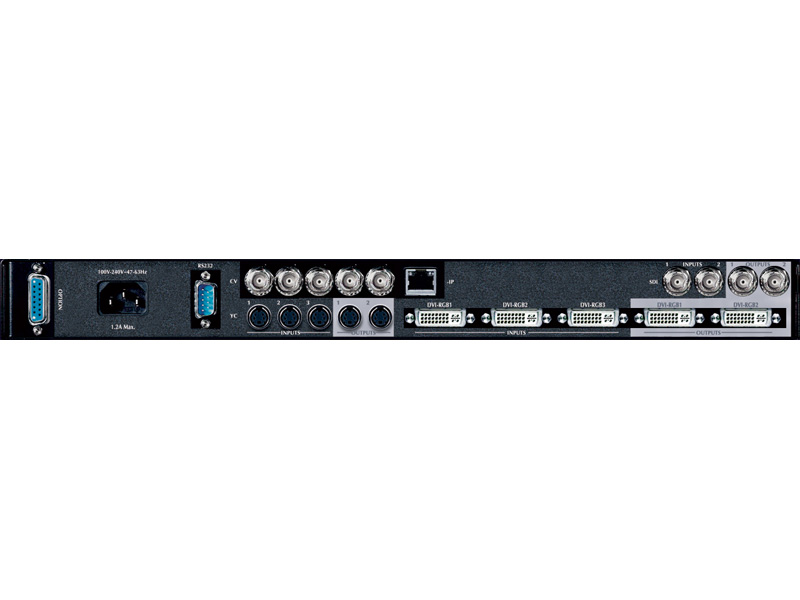

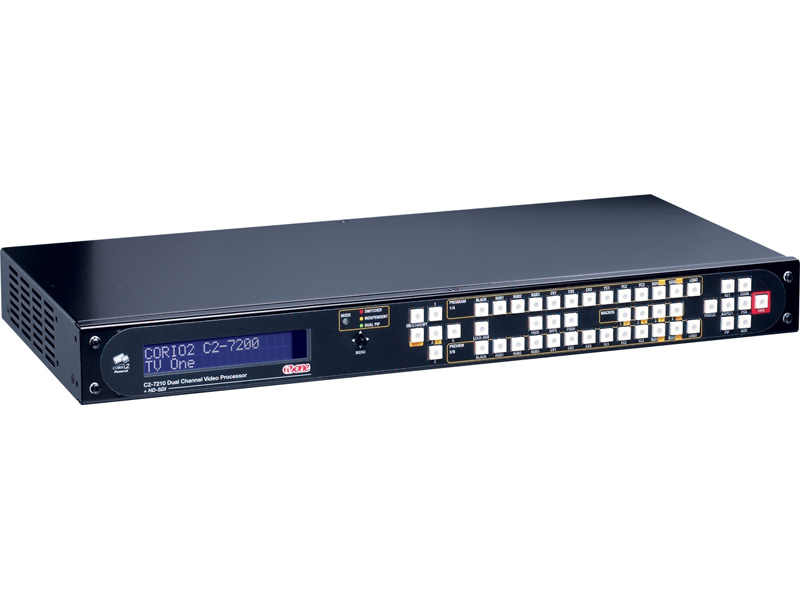

Setup and Control is extremely flexible. Local control is provided by the 48-button CORIO EXP Front Panel designed expressly for handling live events. These buttons plus the multi-way navigation control and integrated LCD bring all the control needed for quick and easy access right to the front panel. Remote control via RS-232 or Ethernet (IP) is standard. Macros are provided to facilitate complex command sequences. The Windows Control Panel affords complete control of the unit. The CC-300 CORIOconsole option takes control to the next level by providing the C2-7000 series with the operational feel of a traditional Video Production Switcher. Two rows of 14 buttons, a fader bar, joystick and an integrated LCD touch screen provides access to the powerful C2-7000 series functions with a minimum of keystrokes. Event control directly from the CC-300 is available by the integral interface to Calypso control systems. Virtually any third party device is controllable.

Edge Blending is a standard feature of the C2-7000 series. Because of the ability to "feather" any or all of the edges, multiple images can be aligned vertically, horizontally, or both to create unusual displays. Since it is dual channel, only one unit is required to blend two edges. Using multiple units, there is no limit to the number of blended images. Edge Blending is not limited to high resolution RGB computer images, but can be applied to any input. Gamma correction is employed to compensate for many of the problems faced when blending between projectors. Special preparation of the video in advance is not necessary, since all processing is done within the unit.

Image Layer Processing within the C2-7000 series utilizes a multiple layer video display system whose stacking order can be altered as desired by the user. Using the dual PIP as an example, the layers consist of:

• 1 or 2 image windows (A & B) that can be resized and positioned as desired
• a lock source (the Z layer) which can be an active video or still image background
• 1 or 2 logo images (a & b)
• a colour background

Should the user wish, the layers can be re-ordered (example: B in front of A) and the individual layers can also be made opaque, semi-opaque or transparent. Windows A & B can be positioned anywhere on the screen and used as either key sources or key background images. Logos a & b can also be positioned anywhere on the screen and have their appearance set to opaque normal keying or to semi-transparent for channel branding. When keying, the Z Layer may be moved from the background to the foreground.
